Benchmarks¶

This page shows a checked-in benchmark snapshot for the numpy and jax backends. The artifacts are generated manually so routine docs builds stay fast and deterministic. The figure includes forward runtime, inverse runtime, a 3-channel JAX batch-vs-serial comparison, and round-trip reconstruction error against the original real-valued input signal.

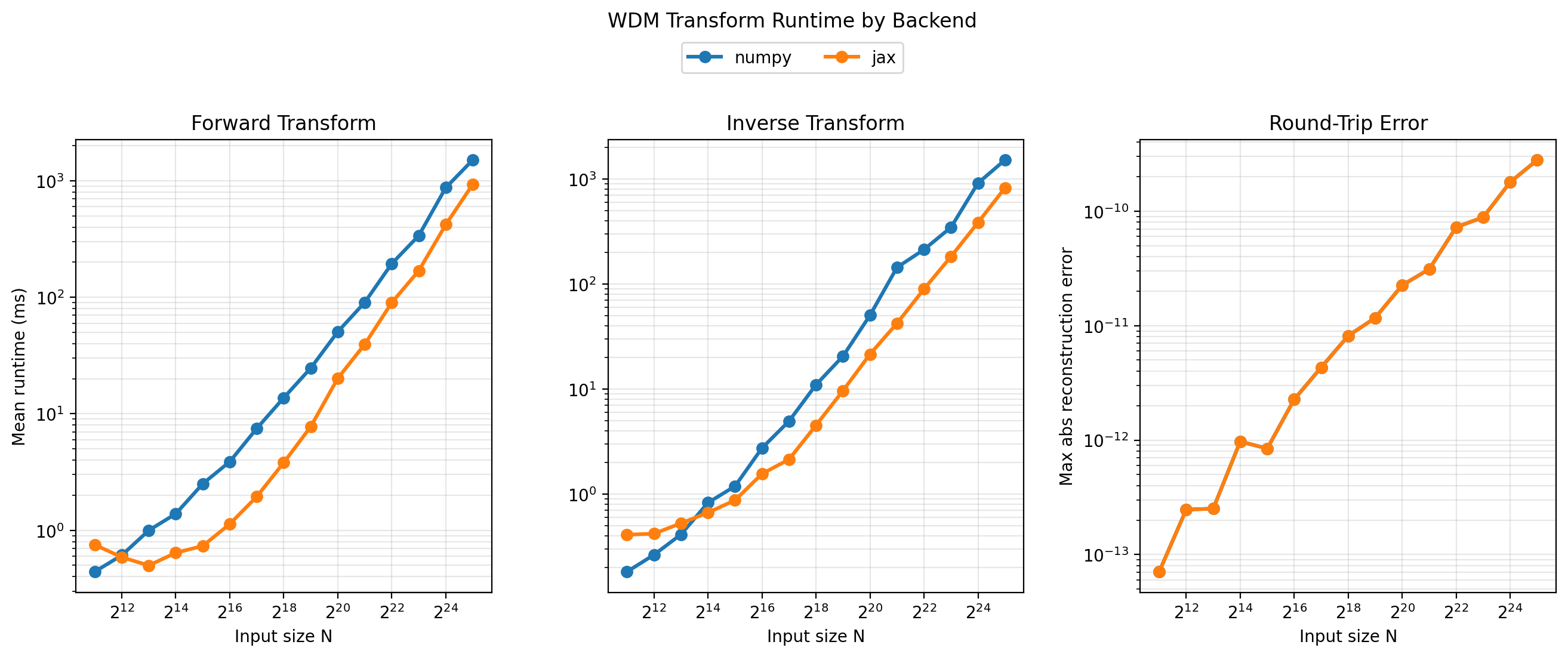

WDM benchmark runtimes

The raw numbers used for the plot are available in benchmark_results.json.

Refreshing The Benchmark Snapshot¶

Regenerate the plot and JSON artifact manually from the repository root:

uv run python docs/examples/generate_benchmark_plot.py --backends numpy jax

If jax is not installed in the active environment, the script will warn and only emit the available backends.

Notes¶

The default benchmark range covers N = 2048 through 33554432 and uses 7 timed runs per point.
Refreshing the full default snapshot is now substantially more expensive than before.
Each measurement uses one warmup call before timed runs.
JAX timings are synchronized before the timer stops, so they include the actual device work.
The timing panels show mean runtimes in milliseconds, with a shaded band for one standard deviation.
The batched JAX panel compares one 3 x N transform against three independent single-series transforms.
Batched JAX execution is mainly a throughput optimization. It often wins for small and medium inputs because dispatch and kernel-launch overheads are amortized across the batch.
At very large N, FFT cost and memory traffic dominate. In that regime, the larger batched working set can increase memory-bandwidth pressure and temporary-allocation costs, so the batched call may show much smaller speedups or even become slower than running the channels serially.
The error panel shows the maximum absolute difference after from_wdm_to_time(from_time_to_wdm(x)).

To generate benchmarks on Colab, you can run the following cell:

In [ ]:

Copied!

! pip install wdm_transform
! wdm_transform_benchmarking
! pip install wdm_transform
! wdm_transform_benchmarking

FFT Reference Overlay¶

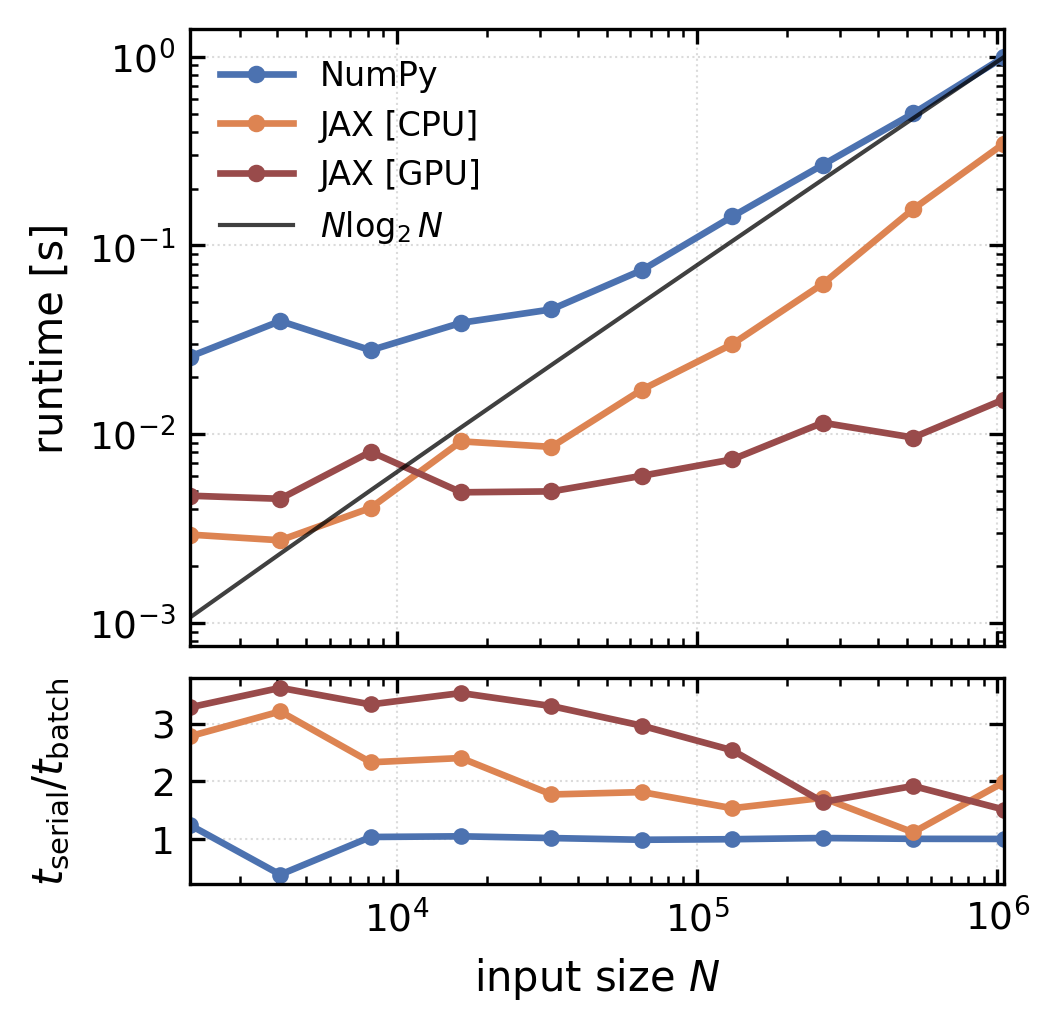

The runtime figure overlays a bare 1D FFT (dashed) on the WDM curves (solid) so the WDM cost can be read relative to a single FFT. The WDM benchmark above does not produce these FFT timings, so run the cell below to collect them. It uses the same fixed-nt=1024 sweep (N = 2^11 … 2^24), 7 timed runs, one warmup, and device synchronization.

Run it twice: once on a CPU runtime (records numpy + jax CPU rows) and once on a GPU runtime (records jax GPU rows). Colab runtimes don't share a filesystem, so download benchmark_fft_data.csv from each and concatenate the rows (keeping a single header) into docs/_static/benchmark_fft_data.csv; then copy that file to docs/manuscript/src/data/benchmark_fft_data.csv, which the manuscript figure reads.

In [ ]:

Copied!





# FFT runtime overlay for the figure's dashed reference curves.
# Self-contained: mirrors the WDM benchmark methodology (fixed nt=1024 sweep,
# 7 timed runs, one warmup, device sync). Run this cell BOTH on a CPU Colab
# runtime (gives numpy + jax[CPU] rows) and on a GPU runtime (gives jax[GPU]).
# Each run writes benchmark_fft_data.csv; since Colab runtimes do not share a
# filesystem, download the CSV from each runtime and concatenate the rows
# (keep one header) into docs/_static/benchmark_fft_data.csv, then copy it to
# docs/manuscript/src/data/benchmark_fft_data.csv.
import os, shutil, time
from pathlib import Path
import numpy as np

FIXED_NT = 1024
N_VALUES = [FIXED_NT * 2 ** p for p in range(1, 15)]  # N = 2^11 .. 2^24
BATCH, NUM_RUNS = 3, 7

DEVICE = "GPU" if shutil.which("nvidia-smi") else "CPU"
os.environ.setdefault("JAX_PLATFORMS", "cuda" if DEVICE == "GPU" else "cpu")


def _sync(v):
    if hasattr(v, "block_until_ready"):
        v.block_until_ready()


def _time(fn):
    _sync(fn())  # warmup (excluded)
    s = []
    for _ in range(NUM_RUNS):
        t0 = time.perf_counter()
        r = fn()
        _sync(r)
        s.append(time.perf_counter() - t0)
    return float(np.median(s)) * 1e3


def bench_numpy(n):
    rng = np.random.default_rng(42)
    x, xb = rng.standard_normal(n), rng.standard_normal((BATCH, n))
    return (
        _time(lambda: np.fft.fft(x)),
        _time(lambda: np.fft.fft(xb, axis=-1)),
        _time(lambda: [np.fft.fft(xb[i]) for i in range(BATCH)]),
    )


def bench_jax(n):
    import jax
    import jax.numpy as jnp
    rng = np.random.default_rng(42)
    x, xb = jnp.asarray(rng.standard_normal(n)), jnp.asarray(rng.standard_normal((BATCH, n)))
    fs, fb = jax.jit(jnp.fft.fft), jax.jit(lambda z: jnp.fft.fft(z, axis=-1))
    return (
        _time(lambda: fs(x)),
        _time(lambda: fb(xb)),
        _time(lambda: [fs(xb[i]) for i in range(BATCH)]),
    )


libraries = ["numpy", "jax"] if DEVICE == "CPU" else ["jax"]
out = Path("benchmark_fft_data.csv")
header = "device,library,N,scalar_ms,batch_ms,serial_ms,speedup"
rows = []
if out.exists():  # keep rows for other devices when run twice on one machine
    rows = [ln for ln in out.read_text().strip().splitlines()[1:]
            if not ln.startswith(f"{DEVICE},")]

print(f"Device: {DEVICE}")
for lib in libraries:
    print(f"\nLibrary: {lib}")
    bench = bench_numpy if lib == "numpy" else bench_jax
    for n in N_VALUES:
        sc, ba, se = bench(n)
        sp = se / ba if ba else float("nan")
        print(f"  N={n:>9}: scalar={sc:>9.3f} ms | batch={ba:>9.3f} ms | "
              f"serial={se:>9.3f} ms | speedup={sp:>5.2f}x")
        rows.append(f"{DEVICE},{lib},{n},{sc:.3f},{ba:.3f},{se:.3f},{sp:.2f}")

out.write_text(header + "\n" + "\n".join(rows) + "\n")
print(f"\nSaved/merged FFT rows into {out.resolve()}")
# FFT runtime overlay for the figure's dashed reference curves.
# Self-contained: mirrors the WDM benchmark methodology (fixed nt=1024 sweep,
# 7 timed runs, one warmup, device sync). Run this cell BOTH on a CPU Colab
# runtime (gives numpy + jax[CPU] rows) and on a GPU runtime (gives jax[GPU]).
# Each run writes benchmark_fft_data.csv; since Colab runtimes do not share a
# filesystem, download the CSV from each runtime and concatenate the rows
# (keep one header) into docs/_static/benchmark_fft_data.csv, then copy it to
# docs/manuscript/src/data/benchmark_fft_data.csv.
import os, shutil, time
from pathlib import Path
import numpy as np

FIXED_NT = 1024
N_VALUES = [FIXED_NT * 2 ** p for p in range(1, 15)]  # N = 2^11 .. 2^24
BATCH, NUM_RUNS = 3, 7

DEVICE = "GPU" if shutil.which("nvidia-smi") else "CPU"
os.environ.setdefault("JAX_PLATFORMS", "cuda" if DEVICE == "GPU" else "cpu")


def _sync(v):
    if hasattr(v, "block_until_ready"):
        v.block_until_ready()


def _time(fn):
    _sync(fn())  # warmup (excluded)
    s = []
    for _ in range(NUM_RUNS):
        t0 = time.perf_counter()
        r = fn()
        _sync(r)
        s.append(time.perf_counter() - t0)
    return float(np.median(s)) * 1e3


def bench_numpy(n):
    rng = np.random.default_rng(42)
    x, xb = rng.standard_normal(n), rng.standard_normal((BATCH, n))
    return (
        _time(lambda: np.fft.fft(x)),
        _time(lambda: np.fft.fft(xb, axis=-1)),
        _time(lambda: [np.fft.fft(xb[i]) for i in range(BATCH)]),
    )


def bench_jax(n):
    import jax
    import jax.numpy as jnp
    rng = np.random.default_rng(42)
    x, xb = jnp.asarray(rng.standard_normal(n)), jnp.asarray(rng.standard_normal((BATCH, n)))
    fs, fb = jax.jit(jnp.fft.fft), jax.jit(lambda z: jnp.fft.fft(z, axis=-1))
    return (
        _time(lambda: fs(x)),
        _time(lambda: fb(xb)),
        _time(lambda: [fs(xb[i]) for i in range(BATCH)]),
    )


libraries = ["numpy", "jax"] if DEVICE == "CPU" else ["jax"]
out = Path("benchmark_fft_data.csv")
header = "device,library,N,scalar_ms,batch_ms,serial_ms,speedup"
rows = []
if out.exists():  # keep rows for other devices when run twice on one machine
    rows = [ln for ln in out.read_text().strip().splitlines()[1:]
            if not ln.startswith(f"{DEVICE},")]

print(f"Device: {DEVICE}")
for lib in libraries:
    print(f"\nLibrary: {lib}")
    bench = bench_numpy if lib == "numpy" else bench_jax
    for n in N_VALUES:
        sc, ba, se = bench(n)
        sp = se / ba if ba else float("nan")
        print(f"  N={n:>9}: scalar={sc:>9.3f} ms | batch={ba:>9.3f} ms | "
              f"serial={se:>9.3f} ms | speedup={sp:>5.2f}x")
        rows.append(f"{DEVICE},{lib},{n},{sc:.3f},{ba:.3f},{se:.3f},{sp:.2f}")

out.write_text(header + "\n" + "\n".join(rows) + "\n")
print(f"\nSaved/merged FFT rows into {out.resolve()}")

Device: CPU
JAX devices: [CpuDevice(id=0)]

========================================================================
Forward Kernel: from_freq_to_wdm
========================================================================

Backend: numpy
--------------------------------------------
  N=    2048: scalar=    4.458 ms | batch=   25.740 ms | serial 3x=   31.907 ms | speedup=  1.22x
  N=    4096: scalar=   16.104 ms | batch=   39.771 ms | serial 3x=   14.960 ms | speedup=  0.43x
  N=    8192: scalar=    9.085 ms | batch=   27.840 ms | serial 3x=   28.696 ms | speedup=  1.02x
  N=   16384: scalar=   13.432 ms | batch=   38.901 ms | serial 3x=   40.549 ms | speedup=  1.05x
  N=   32768: scalar=   26.191 ms | batch=   45.824 ms | serial 3x=   46.384 ms | speedup=  1.00x
  N=   65536: scalar=   24.392 ms | batch=   73.988 ms | serial 3x=   72.680 ms | speedup=  0.99x
  N=  131072: scalar=   47.017 ms | batch=  142.336 ms | serial 3x=  141.210 ms | speedup=  0.96x
  N=  262144: scalar=   85.764 ms | batch=  267.249 ms | serial 3x=  270.644 ms | speedup=  1.03x
  N=  524288: scalar=  191.644 ms | batch=  500.352 ms | serial 3x=  499.665 ms | speedup=  1.00x
  N= 1048576: scalar=  464.497 ms | batch=  993.021 ms | serial 3x=  990.045 ms | speedup=  1.01x

Backend: jax
--------------------------------------------
  N=    2048: scalar=    2.754 ms | batch=    2.937 ms | serial 3x=    8.173 ms | speedup=  2.80x
  N=    4096: scalar=    3.302 ms | batch=    2.740 ms | serial 3x=    8.809 ms | speedup=  3.21x
  N=    8192: scalar=    3.243 ms | batch=    4.068 ms | serial 3x=    9.479 ms | speedup=  2.29x
  N=   16384: scalar=    7.113 ms | batch=    9.157 ms | serial 3x=   22.017 ms | speedup=  2.44x
  N=   32768: scalar=    5.315 ms | batch=    8.562 ms | serial 3x=   15.159 ms | speedup=  1.79x
  N=   65536: scalar=    9.863 ms | batch=   17.201 ms | serial 3x=   31.163 ms | speedup=  1.78x
  N=  131072: scalar=   15.113 ms | batch=   30.003 ms | serial 3x=   45.941 ms | speedup=  1.54x
  N=  262144: scalar=   33.375 ms | batch=   62.571 ms | serial 3x=  107.104 ms | speedup=  1.68x
  N=  524288: scalar=   90.888 ms | batch=  155.826 ms | serial 3x=  173.105 ms | speedup=  1.14x
  N= 1048576: scalar=  145.134 ms | batch=  345.835 ms | serial 3x=  685.125 ms | speedup=  2.04x

========================================================================
Inverse Kernel: from_wdm_to_freq
========================================================================

Backend: numpy
--------------------------------------------
  N=    2048: scalar=    2.265 ms | batch=    6.681 ms | serial 3x=    6.892 ms | speedup=  1.03x
  N=    4096: scalar=    2.851 ms | batch=    8.285 ms | serial 3x=    8.552 ms | speedup=  1.03x
  N=    8192: scalar=    5.197 ms | batch=   15.473 ms | serial 3x=   16.920 ms | speedup=  1.09x
  N=   16384: scalar=    7.645 ms | batch=   22.558 ms | serial 3x=   23.186 ms | speedup=  1.01x
  N=   32768: scalar=   14.915 ms | batch=   43.517 ms | serial 3x=   43.631 ms | speedup=  1.00x
  N=   65536: scalar=   24.755 ms | batch=   72.503 ms | serial 3x=   72.463 ms | speedup=  1.01x
  N=  131072: scalar=   45.285 ms | batch=  135.758 ms | serial 3x=  138.545 ms | speedup=  1.01x
  N=  262144: scalar=   85.530 ms | batch=  363.908 ms | serial 3x=  269.843 ms | speedup=  0.71x
  N=  524288: scalar=  161.774 ms | batch=  490.935 ms | serial 3x=  500.774 ms | speedup=  1.03x
  N= 1048576: scalar=  338.566 ms | batch=  998.151 ms | serial 3x= 1002.523 ms | speedup=  1.00x

Backend: jax
--------------------------------------------
  N=    2048: scalar=    1.998 ms | batch=    2.338 ms | serial 3x=    7.135 ms | speedup=  3.08x
  N=    4096: scalar=    1.937 ms | batch=    2.731 ms | serial 3x=    7.391 ms | speedup=  2.67x
  N=    8192: scalar=    2.053 ms | batch=    7.509 ms | serial 3x=   14.874 ms | speedup=  2.00x
  N=   16384: scalar=    6.466 ms | batch=    9.911 ms | serial 3x=   11.593 ms | speedup=  1.15x
  N=   32768: scalar=    5.396 ms | batch=    8.347 ms | serial 3x=   15.166 ms | speedup=  1.80x
  N=   65536: scalar=    9.781 ms | batch=   17.492 ms | serial 3x=   30.227 ms | speedup=  1.73x
  N=  131072: scalar=   13.948 ms | batch=   33.352 ms | serial 3x=   46.744 ms | speedup=  1.40x
  N=  262144: scalar=   31.602 ms | batch=   66.548 ms | serial 3x=  103.055 ms | speedup=  1.56x
  N=  524288: scalar=   50.732 ms | batch=  163.410 ms | serial 3x=  274.656 ms | speedup=  1.70x
  N= 1048576: scalar=  131.664 ms | batch=  404.925 ms | serial 3x=  429.132 ms | speedup=  1.08x

========================================================================
SUMMARY
========================================================================

Forward Kernel: from_freq_to_wdm
------------------------------------------------------------------------
  numpy
    N=    2048 | scalar=    4.458 ms | batch=   25.740 ms | serial=   31.907 ms | speedup=  1.22x
    N=    4096 | scalar=   16.104 ms | batch=   39.771 ms | serial=   14.960 ms | speedup=  0.43x
    N=    8192 | scalar=    9.085 ms | batch=   27.840 ms | serial=   28.696 ms | speedup=  1.02x
    N=   16384 | scalar=   13.432 ms | batch=   38.901 ms | serial=   40.549 ms | speedup=  1.05x
    N=   32768 | scalar=   26.191 ms | batch=   45.824 ms | serial=   46.384 ms | speedup=  1.00x
    N=   65536 | scalar=   24.392 ms | batch=   73.988 ms | serial=   72.680 ms | speedup=  0.99x
    N=  131072 | scalar=   47.017 ms | batch=  142.336 ms | serial=  141.210 ms | speedup=  0.96x
    N=  262144 | scalar=   85.764 ms | batch=  267.249 ms | serial=  270.644 ms | speedup=  1.03x
    N=  524288 | scalar=  191.644 ms | batch=  500.352 ms | serial=  499.665 ms | speedup=  1.00x
    N= 1048576 | scalar=  464.497 ms | batch=  993.021 ms | serial=  990.045 ms | speedup=  1.01x
  jax
    N=    2048 | scalar=    2.754 ms | batch=    2.937 ms | serial=    8.173 ms | speedup=  2.80x
    N=    4096 | scalar=    3.302 ms | batch=    2.740 ms | serial=    8.809 ms | speedup=  3.21x
    N=    8192 | scalar=    3.243 ms | batch=    4.068 ms | serial=    9.479 ms | speedup=  2.29x
    N=   16384 | scalar=    7.113 ms | batch=    9.157 ms | serial=   22.017 ms | speedup=  2.44x
    N=   32768 | scalar=    5.315 ms | batch=    8.562 ms | serial=   15.159 ms | speedup=  1.79x
    N=   65536 | scalar=    9.863 ms | batch=   17.201 ms | serial=   31.163 ms | speedup=  1.78x
    N=  131072 | scalar=   15.113 ms | batch=   30.003 ms | serial=   45.941 ms | speedup=  1.54x
    N=  262144 | scalar=   33.375 ms | batch=   62.571 ms | serial=  107.104 ms | speedup=  1.68x
    N=  524288 | scalar=   90.888 ms | batch=  155.826 ms | serial=  173.105 ms | speedup=  1.14x
    N= 1048576 | scalar=  145.134 ms | batch=  345.835 ms | serial=  685.125 ms | speedup=  2.04x

Inverse Kernel: from_wdm_to_freq
------------------------------------------------------------------------
  numpy
    N=    2048 | scalar=    2.265 ms | batch=    6.681 ms | serial=    6.892 ms | speedup=  1.03x
    N=    4096 | scalar=    2.851 ms | batch=    8.285 ms | serial=    8.552 ms | speedup=  1.03x
    N=    8192 | scalar=    5.197 ms | batch=   15.473 ms | serial=   16.920 ms | speedup=  1.09x
    N=   16384 | scalar=    7.645 ms | batch=   22.558 ms | serial=   23.186 ms | speedup=  1.01x
    N=   32768 | scalar=   14.915 ms | batch=   43.517 ms | serial=   43.631 ms | speedup=  1.00x
    N=   65536 | scalar=   24.755 ms | batch=   72.503 ms | serial=   72.463 ms | speedup=  1.01x
    N=  131072 | scalar=   45.285 ms | batch=  135.758 ms | serial=  138.545 ms | speedup=  1.01x
    N=  262144 | scalar=   85.530 ms | batch=  363.908 ms | serial=  269.843 ms | speedup=  0.71x
    N=  524288 | scalar=  161.774 ms | batch=  490.935 ms | serial=  500.774 ms | speedup=  1.03x
    N= 1048576 | scalar=  338.566 ms | batch=  998.151 ms | serial= 1002.523 ms | speedup=  1.00x
  jax
    N=    2048 | scalar=    1.998 ms | batch=    2.338 ms | serial=    7.135 ms | speedup=  3.08x
    N=    4096 | scalar=    1.937 ms | batch=    2.731 ms | serial=    7.391 ms | speedup=  2.67x
    N=    8192 | scalar=    2.053 ms | batch=    7.509 ms | serial=   14.874 ms | speedup=  2.00x
    N=   16384 | scalar=    6.466 ms | batch=    9.911 ms | serial=   11.593 ms | speedup=  1.15x
    N=   32768 | scalar=    5.396 ms | batch=    8.347 ms | serial=   15.166 ms | speedup=  1.80x
    N=   65536 | scalar=    9.781 ms | batch=   17.492 ms | serial=   30.227 ms | speedup=  1.73x
    N=  131072 | scalar=   13.948 ms | batch=   33.352 ms | serial=   46.744 ms | speedup=  1.40x
    N=  262144 | scalar=   31.602 ms | batch=   66.548 ms | serial=  103.055 ms | speedup=  1.56x
    N=  524288 | scalar=   50.732 ms | batch=  163.410 ms | serial=  274.656 ms | speedup=  1.70x
    N= 1048576 | scalar=  131.664 ms | batch=  404.925 ms | serial=  429.132 ms | speedup=  1.08x

Saved JSON results to benchmark_artifacts/benchmark_results.json
Saved benchmark plot to benchmark_artifacts/benchmark_runtime.png

In [ ]:

========================================================================
Forward Kernel: from_freq_to_wdm
========================================================================

Backend: numpy
--------------------------------------------
  N=    2048: scalar=    5.917 ms | batch=   15.511 ms | serial 3x=   12.738 ms | speedup=  0.82x
  N=    4096: scalar=    6.532 ms | batch=   14.389 ms | serial 3x=   17.107 ms | speedup=  1.19x
  N=    8192: scalar=    8.768 ms | batch=   25.069 ms | serial 3x=   29.540 ms | speedup=  1.17x
  N=   16384: scalar=   12.967 ms | batch=   34.083 ms | serial 3x=   36.064 ms | speedup=  1.07x
  N=   32768: scalar=   21.635 ms | batch=   40.109 ms | serial 3x=   41.646 ms | speedup=  1.01x
  N=   65536: scalar=   21.961 ms | batch=   68.833 ms | serial 3x=   69.782 ms | speedup=  1.03x
  N=  131072: scalar=   42.435 ms | batch=  130.507 ms | serial 3x=  130.032 ms | speedup=  0.99x
  N=  262144: scalar=   82.166 ms | batch=  237.491 ms | serial 3x=  339.709 ms | speedup=  1.41x
  N=  524288: scalar=  150.507 ms | batch=  463.294 ms | serial 3x=  470.540 ms | speedup=  0.98x
  N= 1048576: scalar=  412.646 ms | batch=  925.585 ms | serial 3x=  965.433 ms | speedup=  1.04x

Backend: jax
--------------------------------------------
  N=    2048: scalar=    4.861 ms | batch=    4.720 ms | serial 3x=   15.509 ms | speedup=  3.27x
  N=    4096: scalar=    5.217 ms | batch=    4.545 ms | serial 3x=   16.479 ms | speedup=  3.70x
  N=    8192: scalar=    8.210 ms | batch=    8.075 ms | serial 3x=   26.947 ms | speedup=  3.49x
  N=   16384: scalar=    5.865 ms | batch=    4.920 ms | serial 3x=   17.392 ms | speedup=  3.82x
  N=   32768: scalar=    5.350 ms | batch=    4.975 ms | serial 3x=   16.459 ms | speedup=  3.38x
  N=   65536: scalar=    6.034 ms | batch=    6.018 ms | serial 3x=   17.855 ms | speedup=  2.91x
  N=  131072: scalar=    6.545 ms | batch=    7.347 ms | serial 3x=   18.655 ms | speedup=  2.66x
  N=  262144: scalar=   10.357 ms | batch=   11.498 ms | serial 3x=   18.867 ms | speedup=  1.64x
  N=  524288: scalar=    8.594 ms | batch=    9.596 ms | serial 3x=   18.405 ms | speedup=  1.89x
  N= 1048576: scalar=   12.960 ms | batch=   15.255 ms | serial 3x=   23.018 ms | speedup=  1.50x

Backend: cupy
--------------------------------------------
  N=    2048: scalar=   32.521 ms | batch=  108.987 ms | serial 3x=   76.269 ms | speedup=  0.68x
  N=    4096: scalar=   23.944 ms | batch=   75.379 ms | serial 3x=   69.862 ms | speedup=  0.93x
  N=    8192: scalar=   49.723 ms | batch=  141.127 ms | serial 3x=  143.091 ms | speedup=  1.00x
  N=   16384: scalar=   47.792 ms | batch=  139.898 ms | serial 3x=  147.570 ms | speedup=  1.05x
  N=   32768: scalar=   91.693 ms | batch=  392.255 ms | serial 3x=  281.871 ms | speedup=  0.77x
  N=   65536: scalar=   95.341 ms | batch=  289.147 ms | serial 3x=  282.998 ms | speedup=  0.98x
  N=  131072: scalar=  192.553 ms | batch=  584.867 ms | serial 3x=  574.453 ms | speedup=  0.96x
  N=  262144: scalar=  198.532 ms | batch=  580.031 ms | serial 3x=  572.687 ms | speedup=  0.98x
  N=  524288: scalar=  544.619 ms | batch= 1122.384 ms | serial 3x= 1110.978 ms | speedup=  0.99x
  N= 1048576: scalar=  528.699 ms | batch= 1109.168 ms | serial 3x= 1130.090 ms | speedup=  1.02x

========================================================================
Inverse Kernel: from_wdm_to_freq
========================================================================

Backend: numpy
--------------------------------------------
  N=    2048: scalar=    2.075 ms | batch=    6.099 ms | serial 3x=    6.389 ms | speedup=  1.04x
  N=    4096: scalar=    2.626 ms | batch=    7.735 ms | serial 3x=    8.026 ms | speedup=  1.04x
  N=    8192: scalar=    5.220 ms | batch=   14.510 ms | serial 3x=   14.958 ms | speedup=  1.04x
  N=   16384: scalar=    6.903 ms | batch=   21.511 ms | serial 3x=   22.217 ms | speedup=  1.00x
  N=   32768: scalar=   13.171 ms | batch=   38.782 ms | serial 3x=   40.792 ms | speedup=  1.04x
  N=   65536: scalar=   21.457 ms | batch=   62.698 ms | serial 3x=   98.653 ms | speedup=  1.57x
  N=  131072: scalar=   61.727 ms | batch=  186.845 ms | serial 3x=  119.999 ms | speedup=  0.64x
  N=  262144: scalar=   74.355 ms | batch=  230.790 ms | serial 3x=  235.094 ms | speedup=  1.02x
  N=  524288: scalar=  146.481 ms | batch=  459.847 ms | serial 3x=  449.249 ms | speedup=  0.95x
  N= 1048576: scalar=  295.719 ms | batch=  925.629 ms | serial 3x=  887.321 ms | speedup=  0.96x

Backend: jax
--------------------------------------------
  N=    2048: scalar=    6.230 ms | batch=    7.559 ms | serial 3x=   25.074 ms | speedup=  3.03x
  N=    4096: scalar=    5.845 ms | batch=    4.758 ms | serial 3x=   15.911 ms | speedup=  3.55x
  N=    8192: scalar=    4.453 ms | batch=    4.429 ms | serial 3x=   15.789 ms | speedup=  3.68x
  N=   16384: scalar=    3.970 ms | batch=    4.450 ms | serial 3x=   16.372 ms | speedup=  3.69x
  N=   32768: scalar=    4.871 ms | batch=    4.818 ms | serial 3x=   17.441 ms | speedup=  3.52x
  N=   65536: scalar=    4.501 ms | batch=    5.027 ms | serial 3x=   16.290 ms | speedup=  3.23x
  N=  131072: scalar=    4.756 ms | batch=    4.748 ms | serial 3x=   15.790 ms | speedup=  3.33x
  N=  262144: scalar=    4.624 ms | batch=    8.410 ms | serial 3x=   23.513 ms | speedup=  2.76x
  N=  524288: scalar=    6.725 ms | batch=    9.465 ms | serial 3x=   15.504 ms | speedup=  1.64x
  N= 1048576: scalar=   10.469 ms | batch=   20.320 ms | serial 3x=   21.111 ms | speedup=  1.20x

Backend: cupy
--------------------------------------------
  N=    2048: scalar=   21.234 ms | batch=   60.175 ms | serial 3x=   62.125 ms | speedup=  1.01x
  N=    4096: scalar=   21.241 ms | batch=   61.103 ms | serial 3x=   63.151 ms | speedup=  1.01x
  N=    8192: scalar=   42.611 ms | batch=  120.312 ms | serial 3x=  125.988 ms | speedup=  1.05x
  N=   16384: scalar=   40.946 ms | batch=  168.397 ms | serial 3x=  174.575 ms | speedup=  1.12x
  N=   32768: scalar=   79.314 ms | batch=  238.617 ms | serial 3x=  242.138 ms | speedup=  1.03x
  N=   65536: scalar=   80.039 ms | batch=  236.975 ms | serial 3x=  259.056 ms | speedup=  1.03x
  N=  131072: scalar=  161.993 ms | batch=  475.923 ms | serial 3x=  483.335 ms | speedup=  1.00x
  N=  262144: scalar=  168.951 ms | batch=  487.539 ms | serial 3x=  486.211 ms | speedup=  1.00x
  N=  524288: scalar=  331.027 ms | batch=  948.665 ms | serial 3x=  960.568 ms | speedup=  1.01x
  N= 1048576: scalar=  315.858 ms | batch=  959.198 ms | serial 3x=  958.334 ms | speedup=  0.99x

========================================================================
SUMMARY
========================================================================

Forward Kernel: from_freq_to_wdm
------------------------------------------------------------------------
  numpy
    N=    2048 | scalar=    5.917 ms | batch=   15.511 ms | serial=   12.738 ms | speedup=  0.82x
    N=    4096 | scalar=    6.532 ms | batch=   14.389 ms | serial=   17.107 ms | speedup=  1.19x
    N=    8192 | scalar=    8.768 ms | batch=   25.069 ms | serial=   29.540 ms | speedup=  1.17x
    N=   16384 | scalar=   12.967 ms | batch=   34.083 ms | serial=   36.064 ms | speedup=  1.07x
    N=   32768 | scalar=   21.635 ms | batch=   40.109 ms | serial=   41.646 ms | speedup=  1.01x
    N=   65536 | scalar=   21.961 ms | batch=   68.833 ms | serial=   69.782 ms | speedup=  1.03x
    N=  131072 | scalar=   42.435 ms | batch=  130.507 ms | serial=  130.032 ms | speedup=  0.99x
    N=  262144 | scalar=   82.166 ms | batch=  237.491 ms | serial=  339.709 ms | speedup=  1.41x
    N=  524288 | scalar=  150.507 ms | batch=  463.294 ms | serial=  470.540 ms | speedup=  0.98x
    N= 1048576 | scalar=  412.646 ms | batch=  925.585 ms | serial=  965.433 ms | speedup=  1.04x
  jax
    N=    2048 | scalar=    4.861 ms | batch=    4.720 ms | serial=   15.509 ms | speedup=  3.27x
    N=    4096 | scalar=    5.217 ms | batch=    4.545 ms | serial=   16.479 ms | speedup=  3.70x
    N=    8192 | scalar=    8.210 ms | batch=    8.075 ms | serial=   26.947 ms | speedup=  3.49x
    N=   16384 | scalar=    5.865 ms | batch=    4.920 ms | serial=   17.392 ms | speedup=  3.82x
    N=   32768 | scalar=    5.350 ms | batch=    4.975 ms | serial=   16.459 ms | speedup=  3.38x
    N=   65536 | scalar=    6.034 ms | batch=    6.018 ms | serial=   17.855 ms | speedup=  2.91x
    N=  131072 | scalar=    6.545 ms | batch=    7.347 ms | serial=   18.655 ms | speedup=  2.66x
    N=  262144 | scalar=   10.357 ms | batch=   11.498 ms | serial=   18.867 ms | speedup=  1.64x
    N=  524288 | scalar=    8.594 ms | batch=    9.596 ms | serial=   18.405 ms | speedup=  1.89x
    N= 1048576 | scalar=   12.960 ms | batch=   15.255 ms | serial=   23.018 ms | speedup=  1.50x
  cupy
    N=    2048 | scalar=   32.521 ms | batch=  108.987 ms | serial=   76.269 ms | speedup=  0.68x
    N=    4096 | scalar=   23.944 ms | batch=   75.379 ms | serial=   69.862 ms | speedup=  0.93x
    N=    8192 | scalar=   49.723 ms | batch=  141.127 ms | serial=  143.091 ms | speedup=  1.00x
    N=   16384 | scalar=   47.792 ms | batch=  139.898 ms | serial=  147.570 ms | speedup=  1.05x
    N=   32768 | scalar=   91.693 ms | batch=  392.255 ms | serial=  281.871 ms | speedup=  0.77x
    N=   65536 | scalar=   95.341 ms | batch=  289.147 ms | serial=  282.998 ms | speedup=  0.98x
    N=  131072 | scalar=  192.553 ms | batch=  584.867 ms | serial=  574.453 ms | speedup=  0.96x
    N=  262144 | scalar=  198.532 ms | batch=  580.031 ms | serial=  572.687 ms | speedup=  0.98x
    N=  524288 | scalar=  544.619 ms | batch= 1122.384 ms | serial= 1110.978 ms | speedup=  0.99x
    N= 1048576 | scalar=  528.699 ms | batch= 1109.168 ms | serial= 1130.090 ms | speedup=  1.02x

Inverse Kernel: from_wdm_to_freq
------------------------------------------------------------------------
  numpy
    N=    2048 | scalar=    2.075 ms | batch=    6.099 ms | serial=    6.389 ms | speedup=  1.04x
    N=    4096 | scalar=    2.626 ms | batch=    7.735 ms | serial=    8.026 ms | speedup=  1.04x
    N=    8192 | scalar=    5.220 ms | batch=   14.510 ms | serial=   14.958 ms | speedup=  1.04x
    N=   16384 | scalar=    6.903 ms | batch=   21.511 ms | serial=   22.217 ms | speedup=  1.00x
    N=   32768 | scalar=   13.171 ms | batch=   38.782 ms | serial=   40.792 ms | speedup=  1.04x
    N=   65536 | scalar=   21.457 ms | batch=   62.698 ms | serial=   98.653 ms | speedup=  1.57x
    N=  131072 | scalar=   61.727 ms | batch=  186.845 ms | serial=  119.999 ms | speedup=  0.64x
    N=  262144 | scalar=   74.355 ms | batch=  230.790 ms | serial=  235.094 ms | speedup=  1.02x
    N=  524288 | scalar=  146.481 ms | batch=  459.847 ms | serial=  449.249 ms | speedup=  0.95x
    N= 1048576 | scalar=  295.719 ms | batch=  925.629 ms | serial=  887.321 ms | speedup=  0.96x
  jax
    N=    2048 | scalar=    6.230 ms | batch=    7.559 ms | serial=   25.074 ms | speedup=  3.03x
    N=    4096 | scalar=    5.845 ms | batch=    4.758 ms | serial=   15.911 ms | speedup=  3.55x
    N=    8192 | scalar=    4.453 ms | batch=    4.429 ms | serial=   15.789 ms | speedup=  3.68x
    N=   16384 | scalar=    3.970 ms | batch=    4.450 ms | serial=   16.372 ms | speedup=  3.69x
    N=   32768 | scalar=    4.871 ms | batch=    4.818 ms | serial=   17.441 ms | speedup=  3.52x
    N=   65536 | scalar=    4.501 ms | batch=    5.027 ms | serial=   16.290 ms | speedup=  3.23x
    N=  131072 | scalar=    4.756 ms | batch=    4.748 ms | serial=   15.790 ms | speedup=  3.33x
    N=  262144 | scalar=    4.624 ms | batch=    8.410 ms | serial=   23.513 ms | speedup=  2.76x
    N=  524288 | scalar=    6.725 ms | batch=    9.465 ms | serial=   15.504 ms | speedup=  1.64x
    N= 1048576 | scalar=   10.469 ms | batch=   20.320 ms | serial=   21.111 ms | speedup=  1.20x
  cupy
    N=    2048 | scalar=   21.234 ms | batch=   60.175 ms | serial=   62.125 ms | speedup=  1.01x
    N=    4096 | scalar=   21.241 ms | batch=   61.103 ms | serial=   63.151 ms | speedup=  1.01x
    N=    8192 | scalar=   42.611 ms | batch=  120.312 ms | serial=  125.988 ms | speedup=  1.05x
    N=   16384 | scalar=   40.946 ms | batch=  168.397 ms | serial=  174.575 ms | speedup=  1.12x
    N=   32768 | scalar=   79.314 ms | batch=  238.617 ms | serial=  242.138 ms | speedup=  1.03x
    N=   65536 | scalar=   80.039 ms | batch=  236.975 ms | serial=  259.056 ms | speedup=  1.03x
    N=  131072 | scalar=  161.993 ms | batch=  475.923 ms | serial=  483.335 ms | speedup=  1.00x
    N=  262144 | scalar=  168.951 ms | batch=  487.539 ms | serial=  486.211 ms | speedup=  1.00x
    N=  524288 | scalar=  331.027 ms | batch=  948.665 ms | serial=  960.568 ms | speedup=  1.01x
    N= 1048576 | scalar=  315.858 ms | batch=  959.198 ms | serial=  958.334 ms | speedup=  0.99x

Saved JSON results to benchmark_artifacts/benchmark_results.json
Saved benchmark plot to benchmark_artifacts/benchmark_runtime.png

In [ ]:

Copied!





import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# -----------------------
# Load data
# -----------------------
data = pd.read_csv(
    "https://raw.githubusercontent.com/pywavelet/wdm_transform/refs/heads/main/docs/_static/benchmark_data.csv"
)

data["label"] = (
    data["library"].str.lower().map({"numpy": "NumPy", "jax": "JAX"})
    + " "
    + data["device"]
)

data["batch_s"] = data["batch_ms"] / 1000.0
data["speedup_batch_vs_serial"] = data["serial_ms"] / data["batch_ms"]

def make_label(row):
    if row["library"] == "numpy":
        return "NumPy"
    elif row["library"] == "jax" and row["device"] == "CPU":
        return "JAX [CPU]"
    elif row["library"] == "jax" and row["device"] == "GPU":
        return "JAX [GPU]"
    else:
        return f"{row['library']} [{row['device']}]"

data["label"] = data.apply(make_label, axis=1)

order = ["NumPy", "JAX [CPU]", "JAX [GPU]"]

# -----------------------
# Paper-style plotting
# -----------------------
plt.rcParams.update({
    "font.size": 9,
    "axes.labelsize": 10,
    "axes.titlesize": 10,
    "legend.fontsize": 8,
    "xtick.labelsize": 9,
    "ytick.labelsize": 9,
    "lines.linewidth": 1.4,
    "axes.linewidth": 0.8,
    "xtick.direction": "in",
    "ytick.direction": "in",
    "xtick.top": True,
    "ytick.right": True,
    "savefig.dpi": 300,
})
colors = {
    "NumPy": "#4C72B0",
    "JAX [CPU]": "#DD8452",
    "JAX [GPU]": "#994B4B",
}

fig, (ax, ax_sp) = plt.subplots(
    2,
    1,
    figsize=(3.5, 3.7),
    sharex=True,
    gridspec_kw={"height_ratios": [3.0, 1.0], "hspace": 0.08},
)

# -----------------------
# Top panel: batched runtime
# -----------------------
for label in order:
    df = data[data["label"] == label].sort_values("N")
    if df.empty:
        continue

    ax.loglog(
        df["N"],
        df["batch_s"],
        marker="o",
        ms=3.2,
        lw=1.6,
        label=label,
        color=colors.get(label, "black"),
    )

# N log N reference, anchored to final NumPy CPU point
ref_df = data[data["label"] == "NumPy"].sort_values("N")
N_ref = ref_df["N"].to_numpy()
t_ref = ref_df["batch_s"].to_numpy()
ref = N_ref * np.log2(N_ref)
ref = ref / ref[-1] * t_ref[-1]

ax.loglog(
    N_ref,
    ref,
    color='black',
    ls="-",
    lw=1.0,
    alpha=0.75,
    label=r"$N\log_2 N$",
)

ax.set_ylabel(r"runtime [s]")
ax.grid(True, which="major", ls=":", lw=0.5, alpha=0.45)
ax.grid(False, which="minor")
ax.legend(frameon=False, loc="upper left", handlelength=2.2)

# -----------------------
# Bottom panel: batching speedup
# -----------------------
for label in order:
    df = data[data["label"] == label].sort_values("N")
    if df.empty:
        continue

    ax_sp.semilogx(
        df["N"],
        df["speedup_batch_vs_serial"],
        marker="o",
        ms=3.0,
        lw=1.6,
        color=colors.get(label, "black"),
    )

# ax_sp.axhline(1.0, ls="--", lw=0.9, alpha=0.7)

ax_sp.set_xlabel(r"input size $N$")
ax_sp.set_ylabel(r"$t_{\rm serial}/t_{\rm batch}$")
ax_sp.grid(True, which="major", ls=":", lw=0.5, alpha=0.45)
ax_sp.grid(False, which="minor")
ax_sp.set_xlim(N_ref.min(), N_ref.max())
fig.align_ylabels()

fig.savefig("_static/benchmark_scaling.png", dpi=300, bbox_inches="tight")

plt.close(fig)
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

# -----------------------
# Load data
# -----------------------
data = pd.read_csv(
    "https://raw.githubusercontent.com/pywavelet/wdm_transform/refs/heads/main/docs/_static/benchmark_data.csv"
)

data["label"] = (
    data["library"].str.lower().map({"numpy": "NumPy", "jax": "JAX"})
    + " "
    + data["device"]
)

data["batch_s"] = data["batch_ms"] / 1000.0
data["speedup_batch_vs_serial"] = data["serial_ms"] / data["batch_ms"]

def make_label(row):
    if row["library"] == "numpy":
        return "NumPy"
    elif row["library"] == "jax" and row["device"] == "CPU":
        return "JAX [CPU]"
    elif row["library"] == "jax" and row["device"] == "GPU":
        return "JAX [GPU]"
    else:
        return f"{row['library']} [{row['device']}]"

data["label"] = data.apply(make_label, axis=1)

order = ["NumPy", "JAX [CPU]", "JAX [GPU]"]

# -----------------------
# Paper-style plotting
# -----------------------
plt.rcParams.update({
    "font.size": 9,
    "axes.labelsize": 10,
    "axes.titlesize": 10,
    "legend.fontsize": 8,
    "xtick.labelsize": 9,
    "ytick.labelsize": 9,
    "lines.linewidth": 1.4,
    "axes.linewidth": 0.8,
    "xtick.direction": "in",
    "ytick.direction": "in",
    "xtick.top": True,
    "ytick.right": True,
    "savefig.dpi": 300,
})
colors = {
    "NumPy": "#4C72B0",
    "JAX [CPU]": "#DD8452",
    "JAX [GPU]": "#994B4B",
}

fig, (ax, ax_sp) = plt.subplots(
    2,
    1,
    figsize=(3.5, 3.7),
    sharex=True,
    gridspec_kw={"height_ratios": [3.0, 1.0], "hspace": 0.08},
)

# -----------------------
# Top panel: batched runtime
# -----------------------
for label in order:
    df = data[data["label"] == label].sort_values("N")
    if df.empty:
        continue

    ax.loglog(
        df["N"],
        df["batch_s"],
        marker="o",
        ms=3.2,
        lw=1.6,
        label=label,
        color=colors.get(label, "black"),
    )

# N log N reference, anchored to final NumPy CPU point
ref_df = data[data["label"] == "NumPy"].sort_values("N")
N_ref = ref_df["N"].to_numpy()
t_ref = ref_df["batch_s"].to_numpy()
ref = N_ref * np.log2(N_ref)
ref = ref / ref[-1] * t_ref[-1]

ax.loglog(
    N_ref,
    ref,
    color='black',
    ls="-",
    lw=1.0,
    alpha=0.75,
    label=r"$N\log_2 N$",
)

ax.set_ylabel(r"runtime [s]")
ax.grid(True, which="major", ls=":", lw=0.5, alpha=0.45)
ax.grid(False, which="minor")
ax.legend(frameon=False, loc="upper left", handlelength=2.2)

# -----------------------
# Bottom panel: batching speedup
# -----------------------
for label in order:
    df = data[data["label"] == label].sort_values("N")
    if df.empty:
        continue

    ax_sp.semilogx(
        df["N"],
        df["speedup_batch_vs_serial"],
        marker="o",
        ms=3.0,
        lw=1.6,
        color=colors.get(label, "black"),
    )

# ax_sp.axhline(1.0, ls="--", lw=0.9, alpha=0.7)

ax_sp.set_xlabel(r"input size $N$")
ax_sp.set_ylabel(r"$t_{\rm serial}/t_{\rm batch}$")
ax_sp.grid(True, which="major", ls=":", lw=0.5, alpha=0.45)
ax_sp.grid(False, which="minor")
ax_sp.set_xlim(N_ref.min(), N_ref.max())
fig.align_ylabels()

fig.savefig("_static/benchmark_scaling.png", dpi=300, bbox_inches="tight")

plt.close(fig)
