Deglitching with Thresholding¶

This study shows a deliberately simple WDM-domain cleanup workflow:

• generate a smooth signal plus stationary noise
• inject a few loud, short-duration artifacts
• transform the data into WDM coefficients
• build a blurred glitch score in the WDM grid
• threshold that score to obtain a soft time-bin mask
• attenuate the flagged WDM coefficients and reconstruct the cleaned series

The point is not that this is a production deglitcher. The point is that WDM makes impulsive, broadband artifacts easy to localize in a way that is much harder to express with a plain FFT.

In [1]:

from pathlib import Path
import subprocess
import sys

if "google.colab" in sys.modules:
    subprocess.run(
        [
            sys.executable,
            "-m",
            "pip",
            "install",
            "-q",
            "corner>=2.2",
            "jax[cpu]>=0.4.30",
            "numpyro>=0.15",
            "ipywidgets>=8.1",
            "git+https://github.com/pywavelet/wdm_transform.git",
        ],
        check=True,
    )

import corner
import jax
import matplotlib.pyplot as plt
import numpy as np
import numpyro
import numpyro.distributions as dist
from scipy.ndimage import gaussian_filter, gaussian_filter1d
from scipy.signal import chirp, welch

jax.config.update("jax_enable_x64", True)

import jax.numpy as jnp
from jax import random
from matplotlib.lines import Line2D
from numpyro.infer import MCMC, NUTS, init_to_value

from wdm_transform import TimeSeries, WDM

if "__file__" in globals():
    NOTEBOOK_DIR = Path(__file__).resolve().parent
else:
    cwd = Path.cwd()
    docs_studies_dir = cwd / "docs" / "studies"
    NOTEBOOK_DIR = docs_studies_dir if docs_studies_dir.exists() else cwd

FIGURE_OUTPUT_DIR = NOTEBOOK_DIR / "wdm_deglitching_with_thresholding_assets"
FIGURE_OUTPUT_DIR.mkdir(parents=True, exist_ok=True)


def save_figure(fig: plt.Figure, stem: str, *, dpi: int = 160) -> Path:
    """Save a study figure to a docs-local assets directory and close it."""
    path = FIGURE_OUTPUT_DIR / f"{stem}.png"
    fig.savefig(path, dpi=dpi, bbox_inches="tight")
    plt.close(fig)
    return path


RNG = np.random.default_rng(12)


def build_clean_signal(times: np.ndarray) -> np.ndarray:
    """Signal with one dominant monochromatic component plus milder structure."""
    dominant = TARGET_AMPLITUDE * np.sin(
        2.0 * np.pi * TARGET_FREQUENCY * times + TARGET_PHASE
    )
    weak_background = 0.08 * np.cos(2.0 * np.pi * 0.045 * times + 1.1)
    return dominant + weak_background


def inject_glitches(
    times: np.ndarray,
    centers: np.ndarray,
    amplitudes: np.ndarray,
    widths: np.ndarray,
    carrier_frequencies: np.ndarray,
    phases: np.ndarray,
) -> np.ndarray:
    glitch = np.zeros_like(times)
    sample_index = np.arange(len(times))
    for center, amp, width, carrier_frequency, phase in zip(
        centers,
        amplitudes,
        widths,
        carrier_frequencies,
        phases,
        strict=True,
    ):
        envelope = np.exp(-0.5 * ((sample_index - center) / width) ** 2)
        carrier = np.cos(2.0 * np.pi * carrier_frequency * (times - times[center]) + phase)
        glitch += amp * envelope * carrier
    return glitch


def robust_channel_scale(coeffs: np.ndarray) -> np.ndarray:
    """Robust per-channel noise scale from the median absolute deviation."""
    scale = np.median(np.abs(coeffs), axis=0) / 0.6745
    return np.maximum(scale, 1e-6)


def welch_psd(values: np.ndarray, dt: float) -> tuple[np.ndarray, np.ndarray]:
    fs = 1.0 / dt
    freqs, psd = welch(values, fs=fs, nperseg=128, noverlap=96, scaling="density")
    return freqs, psd


def keep_runs(mask: np.ndarray, *, min_width: int) -> np.ndarray:
    """Keep only contiguous runs of ones that are at least ``min_width`` long."""
    kept = np.zeros_like(mask)
    starts = np.where(np.diff(np.concatenate([[0], mask, [0]])) == 1)[0]
    stops = np.where(np.diff(np.concatenate([[0], mask, [0]])) == -1)[0]
    for start, stop in zip(starts, stops):
        if stop - start >= min_width:
            kept[start:stop] = 1.0
    return kept


def detect_glitches(
    coeffs: np.ndarray,
    *,
    dt: float,
    threshold_scale: float = 1.4,
    min_width: int = 2,
) -> dict[str, np.ndarray | float]:
    """Build the WDM-domain glitch score and corresponding soft mask."""
    channel_scale = robust_channel_scale(coeffs)
    whitened = np.abs(coeffs) / channel_scale[None, :]
    score_grid = gaussian_filter(whitened, sigma=(0.7, 1.2))
    time_score = score_grid.mean(axis=1)

    score_median = np.median(time_score)
    score_mad = np.median(np.abs(time_score - score_median))
    threshold = score_median + threshold_scale * score_mad

    mask_hard = (time_score > threshold).astype(float)
    mask_hard = keep_runs(mask_hard, min_width=min_width)
    mask_soft = gaussian_filter1d(mask_hard, sigma=0.9)
    mask_soft = np.clip(mask_soft, 0.0, 1.0)

    return {
        "channel_scale": channel_scale,
        "whitened": whitened,
        "score_grid": score_grid,
        "time_score": time_score,
        "threshold": float(threshold),
        "mask_hard": mask_hard,
        "mask_soft": mask_soft,
        "flagged_bins": np.flatnonzero(mask_hard),
    }


def iterative_deglitch(
    values: np.ndarray,
    *,
    dt: float,
    nt: int,
    n_iter: int,
) -> list[dict[str, np.ndarray | float]]:
    """Alternate WDM detection and reconstruction for a few staged iterations."""
    current = values.copy()
    history: list[dict[str, np.ndarray | float]] = []

    for iteration in range(n_iter):
        coeffs = np.asarray(TimeSeries(current, dt=dt).to_wdm(nt=nt).coeffs)
        threshold_scale = 1.4 - 0.10 * iteration
        attenuation_strength = 0.45 + 0.15 * iteration
        detection = detect_glitches(coeffs, dt=dt, threshold_scale=threshold_scale)
        coeff_mask = (np.asarray(detection["whitened"]) > 2.5).astype(float)
        attenuation = 1.0 - attenuation_strength * (
            np.asarray(detection["mask_soft"])[:, None] * coeff_mask
        )
        cleaned = np.asarray(WDM(coeffs * attenuation, dt=dt).to_time_series().data)

        history.append(
            {
                "iteration": iteration + 1,
                "input": current,
                "coeffs": coeffs,
                "coeff_mask": coeff_mask,
                "threshold_scale": threshold_scale,
                "attenuation": attenuation,
                "cleaned": cleaned,
                **detection,
            }
        )
        current = cleaned

    return history


def run_nuts(y: np.ndarray, times: np.ndarray, seed: int) -> dict[str, np.ndarray]:
    jt = jnp.asarray(times)
    jy = jnp.asarray(y)

    def model() -> None:
        amp = numpyro.sample("A", dist.Uniform(0.0, 1.0))
        freq0 = numpyro.sample("f0", dist.Uniform(0.1, 0.25))
        phi0 = numpyro.sample("phi", dist.Uniform(-jnp.pi, jnp.pi))
        sigma = numpyro.sample("sigma", dist.HalfNormal(1.0))

        mean = amp * jnp.sin(2.0 * jnp.pi * freq0 * jt + phi0)
        numpyro.sample("obs", dist.Normal(mean, sigma), obs=jy)

    kernel = NUTS(
        model,
        init_strategy=init_to_value(
            values={
                "A": TARGET_AMPLITUDE,
                "f0": TARGET_FREQUENCY,
                "phi": TARGET_PHASE,
                "sigma": NOISE_SIGMA,
            }
        ),
    )
    mcmc = MCMC(
        kernel,
        num_warmup=300,
        num_samples=500,
        num_chains=1,
        progress_bar=False,
    )
    mcmc.run(random.PRNGKey(seed))
    return {name: np.asarray(values) for name, values in mcmc.get_samples().items()}


def pack_samples(samples: dict[str, np.ndarray]) -> np.ndarray:
    return np.column_stack([samples["A"], samples["f0"], samples["phi"]])


def summarize(samples: dict[str, np.ndarray]) -> dict[str, tuple[float, float]]:
    return {
        name: (float(values.mean()), float(values.std()))
        for name, values in samples.items()
    }

from pathlib import Path import subprocess import sys if "google.colab" in sys.modules: subprocess.run( [ sys.executable, "-m", "pip", "install", "-q", "corner>=2.2", "jax[cpu]>=0.4.30", "numpyro>=0.15", "ipywidgets>=8.1", "git+https://github.com/pywavelet/wdm_transform.git", ], check=True, ) import corner import jax import matplotlib.pyplot as plt import numpy as np import numpyro import numpyro.distributions as dist from scipy.ndimage import gaussian_filter, gaussian_filter1d from scipy.signal import chirp, welch jax.config.update("jax_enable_x64", True) import jax.numpy as jnp from jax import random from matplotlib.lines import Line2D from numpyro.infer import MCMC, NUTS, init_to_value from wdm_transform import TimeSeries, WDM if "__file__" in globals(): NOTEBOOK_DIR = Path(__file__).resolve().parent else: cwd = Path.cwd() docs_studies_dir = cwd / "docs" / "studies" NOTEBOOK_DIR = docs_studies_dir if docs_studies_dir.exists() else cwd FIGURE_OUTPUT_DIR = NOTEBOOK_DIR / "wdm_deglitching_with_thresholding_assets" FIGURE_OUTPUT_DIR.mkdir(parents=True, exist_ok=True) def save_figure(fig: plt.Figure, stem: str, *, dpi: int = 160) -> Path: """Save a study figure to a docs-local assets directory and close it.""" path = FIGURE_OUTPUT_DIR / f"{stem}.png" fig.savefig(path, dpi=dpi, bbox_inches="tight") plt.close(fig) return path RNG = np.random.default_rng(12) def build_clean_signal(times: np.ndarray) -> np.ndarray: """Signal with one dominant monochromatic component plus milder structure.""" dominant = TARGET_AMPLITUDE * np.sin( 2.0 * np.pi * TARGET_FREQUENCY * times + TARGET_PHASE ) weak_background = 0.08 * np.cos(2.0 * np.pi * 0.045 * times + 1.1) return dominant + weak_background def inject_glitches( times: np.ndarray, centers: np.ndarray, amplitudes: np.ndarray, widths: np.ndarray, carrier_frequencies: np.ndarray, phases: np.ndarray, ) -> np.ndarray: glitch = np.zeros_like(times) sample_index = np.arange(len(times)) for center, amp, width, carrier_frequency, phase in zip( centers, amplitudes, widths, carrier_frequencies, phases, strict=True, ): envelope = np.exp(-0.5 * ((sample_index - center) / width) ** 2) carrier = np.cos(2.0 * np.pi * carrier_frequency * (times - times[center]) + phase) glitch += amp * envelope * carrier return glitch def robust_channel_scale(coeffs: np.ndarray) -> np.ndarray: """Robust per-channel noise scale from the median absolute deviation.""" scale = np.median(np.abs(coeffs), axis=0) / 0.6745 return np.maximum(scale, 1e-6) def welch_psd(values: np.ndarray, dt: float) -> tuple[np.ndarray, np.ndarray]: fs = 1.0 / dt freqs, psd = welch(values, fs=fs, nperseg=128, noverlap=96, scaling="density") return freqs, psd def keep_runs(mask: np.ndarray, *, min_width: int) -> np.ndarray: """Keep only contiguous runs of ones that are at least ``min_width`` long.""" kept = np.zeros_like(mask) starts = np.where(np.diff(np.concatenate([[0], mask, [0]])) == 1)[0] stops = np.where(np.diff(np.concatenate([[0], mask, [0]])) == -1)[0] for start, stop in zip(starts, stops): if stop - start >= min_width: kept[start:stop] = 1.0 return kept def detect_glitches( coeffs: np.ndarray, *, dt: float, threshold_scale: float = 1.4, min_width: int = 2, ) -> dict[str, np.ndarray | float]: """Build the WDM-domain glitch score and corresponding soft mask.""" channel_scale = robust_channel_scale(coeffs) whitened = np.abs(coeffs) / channel_scale[None, :] score_grid = gaussian_filter(whitened, sigma=(0.7, 1.2)) time_score = score_grid.mean(axis=1) score_median = np.median(time_score) score_mad = np.median(np.abs(time_score - score_median)) threshold = score_median + threshold_scale * score_mad mask_hard = (time_score > threshold).astype(float) mask_hard = keep_runs(mask_hard, min_width=min_width) mask_soft = gaussian_filter1d(mask_hard, sigma=0.9) mask_soft = np.clip(mask_soft, 0.0, 1.0) return { "channel_scale": channel_scale, "whitened": whitened, "score_grid": score_grid, "time_score": time_score, "threshold": float(threshold), "mask_hard": mask_hard, "mask_soft": mask_soft, "flagged_bins": np.flatnonzero(mask_hard), } def iterative_deglitch( values: np.ndarray, *, dt: float, nt: int, n_iter: int, ) -> list[dict[str, np.ndarray | float]]: """Alternate WDM detection and reconstruction for a few staged iterations.""" current = values.copy() history: list[dict[str, np.ndarray | float]] = [] for iteration in range(n_iter): coeffs = np.asarray(TimeSeries(current, dt=dt).to_wdm(nt=nt).coeffs) threshold_scale = 1.4 - 0.10 * iteration attenuation_strength = 0.45 + 0.15 * iteration detection = detect_glitches(coeffs, dt=dt, threshold_scale=threshold_scale) coeff_mask = (np.asarray(detection["whitened"]) > 2.5).astype(float) attenuation = 1.0 - attenuation_strength * ( np.asarray(detection["mask_soft"])[:, None] * coeff_mask ) cleaned = np.asarray(WDM(coeffs * attenuation, dt=dt).to_time_series().data) history.append( { "iteration": iteration + 1, "input": current, "coeffs": coeffs, "coeff_mask": coeff_mask, "threshold_scale": threshold_scale, "attenuation": attenuation, "cleaned": cleaned, **detection, } ) current = cleaned return history def run_nuts(y: np.ndarray, times: np.ndarray, seed: int) -> dict[str, np.ndarray]: jt = jnp.asarray(times) jy = jnp.asarray(y) def model() -> None: amp = numpyro.sample("A", dist.Uniform(0.0, 1.0)) freq0 = numpyro.sample("f0", dist.Uniform(0.1, 0.25)) phi0 = numpyro.sample("phi", dist.Uniform(-jnp.pi, jnp.pi)) sigma = numpyro.sample("sigma", dist.HalfNormal(1.0)) mean = amp * jnp.sin(2.0 * jnp.pi * freq0 * jt + phi0) numpyro.sample("obs", dist.Normal(mean, sigma), obs=jy) kernel = NUTS( model, init_strategy=init_to_value( values={ "A": TARGET_AMPLITUDE, "f0": TARGET_FREQUENCY, "phi": TARGET_PHASE, "sigma": NOISE_SIGMA, } ), ) mcmc = MCMC( kernel, num_warmup=300, num_samples=500, num_chains=1, progress_bar=False, ) mcmc.run(random.PRNGKey(seed)) return {name: np.asarray(values) for name, values in mcmc.get_samples().items()} def pack_samples(samples: dict[str, np.ndarray]) -> np.ndarray: return np.column_stack([samples["A"], samples["f0"], samples["phi"]]) def summarize(samples: dict[str, np.ndarray]) -> dict[str, tuple[float, float]]: return { name: (float(values.mean()), float(values.std())) for name, values in samples.items() }

Synthetic data¶

We build a smooth underlying signal, add stationary Gaussian noise, and then inject several loud glitch bursts. Each glitch has a short Gaussian envelope but also a fast oscillatory carrier, so the contamination is both localized in time and rich in high-frequency content. That is exactly the type of feature WDM is good at isolating.

In [2]:

nt = 32
n_total = 2048
dt = 0.1
nf = n_total // nt
TARGET_AMPLITUDE = 0.55
TARGET_FREQUENCY = 0.18
TARGET_PHASE = 0.30
NOISE_SIGMA = 0.18

times = np.arange(n_total) * dt
clean_signal = build_clean_signal(times)
stationary_noise = NOISE_SIGMA * RNG.normal(size=n_total)

glitch_centers = np.array([150, 180, 430, 615, 760, 905])
glitch_amplitudes = np.array([4.2, -5.0, 3.8, -4.5, 5.4, 3.6])
glitch_widths = np.array([3.5, 2.2, 2.8, 3.0, 4.5, 2.4])
glitch_carrier_frequencies = np.array([2.4, 3.8, 2.9, 4.1, 2.2, 4.5])
glitch_phases = np.array([0.2, 1.1, -0.7, 2.4, -1.3, 0.8])
glitches = inject_glitches(
    times,
    glitch_centers,
    glitch_amplitudes,
    glitch_widths,
    glitch_carrier_frequencies,
    glitch_phases,
)

reference = clean_signal + stationary_noise
observed = reference + glitches

reference_series = TimeSeries(reference, dt=dt)
observed_series = TimeSeries(observed, dt=dt)
observed_wdm = observed_series.to_wdm(nt=nt)
coeffs = np.asarray(observed_wdm.coeffs)

print(f"WDM shape: {observed_wdm.shape}")
print(f"Injected glitch sample indices: {glitch_centers.tolist()}")

nt = 32 n_total = 2048 dt = 0.1 nf = n_total // nt TARGET_AMPLITUDE = 0.55 TARGET_FREQUENCY = 0.18 TARGET_PHASE = 0.30 NOISE_SIGMA = 0.18 times = np.arange(n_total) * dt clean_signal = build_clean_signal(times) stationary_noise = NOISE_SIGMA * RNG.normal(size=n_total) glitch_centers = np.array([150, 180, 430, 615, 760, 905]) glitch_amplitudes = np.array([4.2, -5.0, 3.8, -4.5, 5.4, 3.6]) glitch_widths = np.array([3.5, 2.2, 2.8, 3.0, 4.5, 2.4]) glitch_carrier_frequencies = np.array([2.4, 3.8, 2.9, 4.1, 2.2, 4.5]) glitch_phases = np.array([0.2, 1.1, -0.7, 2.4, -1.3, 0.8]) glitches = inject_glitches( times, glitch_centers, glitch_amplitudes, glitch_widths, glitch_carrier_frequencies, glitch_phases, ) reference = clean_signal + stationary_noise observed = reference + glitches reference_series = TimeSeries(reference, dt=dt) observed_series = TimeSeries(observed, dt=dt) observed_wdm = observed_series.to_wdm(nt=nt) coeffs = np.asarray(observed_wdm.coeffs) print(f"WDM shape: {observed_wdm.shape}") print(f"Injected glitch sample indices: {glitch_centers.tolist()}")

WDM shape: (32, 65)
Injected glitch sample indices: [150, 180, 430, 615, 760, 905]

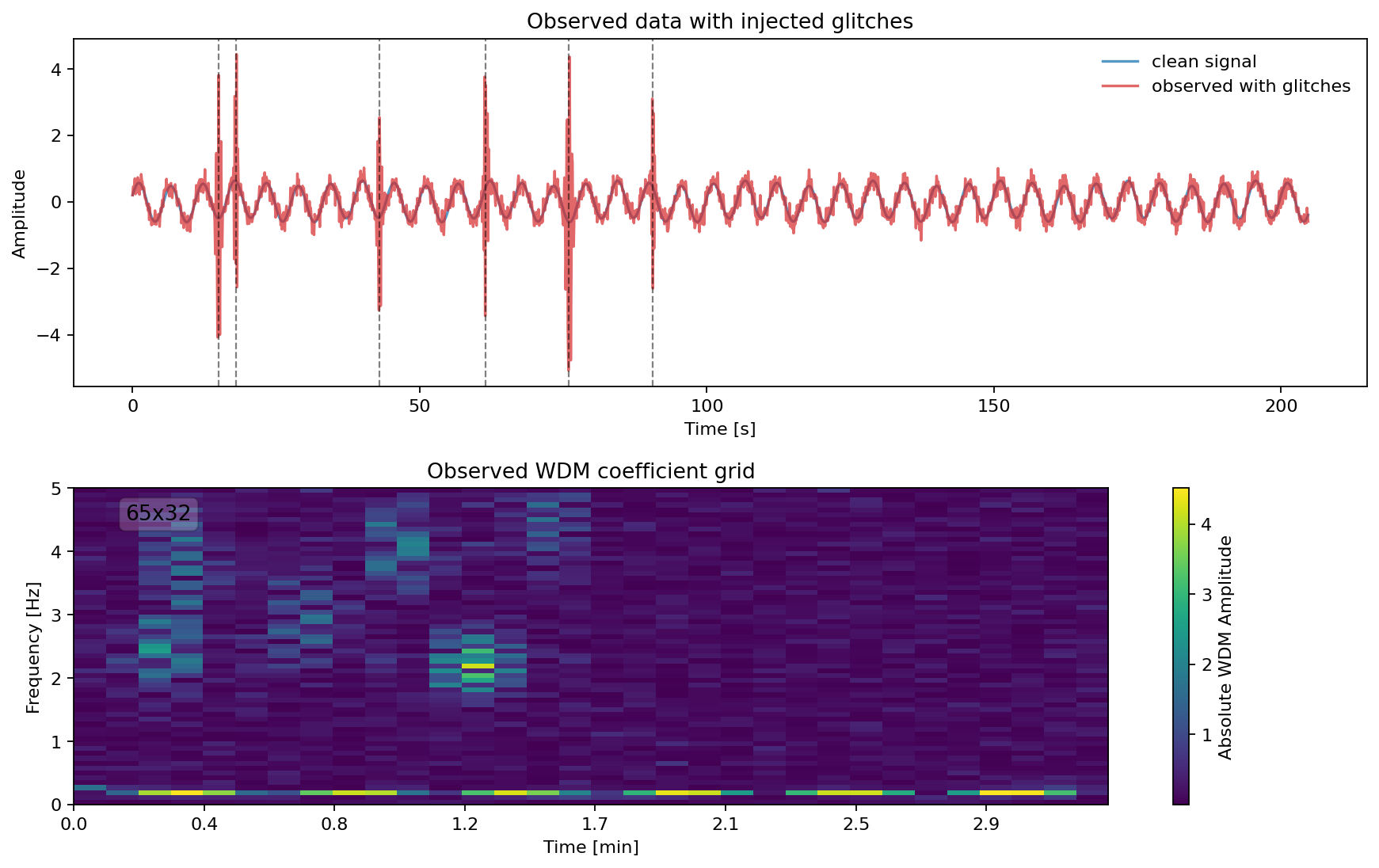

What the contamination looks like¶

In the time domain the glitches appear as obvious short bursts. In the WDM grid they show up as localized time bins with unusually large activity across many channels. That is the key structural clue we use for cleanup.

In [3]:

fig, axes = plt.subplots(2, 1, figsize=(11, 7), height_ratios=[1.1, 1.0])
axes[0].plot(times, clean_signal, color="tab:blue", alpha=0.75, label="clean signal")
axes[0].plot(times, observed, color="tab:red", alpha=0.7, label="observed with glitches")
for center in glitch_centers:
    axes[0].axvline(center * dt, color="black", linestyle="--", linewidth=1.0, alpha=0.5)
axes[0].set_title("Observed data with injected glitches")
axes[0].set_xlabel("Time [s]")
axes[0].set_ylabel("Amplitude")
axes[0].legend(frameon=False, loc="upper right")

observed_wdm.plot(ax=axes[1], cmap="viridis")
axes[1].set_title("Observed WDM coefficient grid")

fig.tight_layout()
_ = save_figure(fig, "contamination_overview")

fig, axes = plt.subplots(2, 1, figsize=(11, 7), height_ratios=[1.1, 1.0]) axes[0].plot(times, clean_signal, color="tab:blue", alpha=0.75, label="clean signal") axes[0].plot(times, observed, color="tab:red", alpha=0.7, label="observed with glitches") for center in glitch_centers: axes[0].axvline(center * dt, color="black", linestyle="--", linewidth=1.0, alpha=0.5) axes[0].set_title("Observed data with injected glitches") axes[0].set_xlabel("Time [s]") axes[0].set_ylabel("Amplitude") axes[0].legend(frameon=False, loc="upper right") observed_wdm.plot(ax=axes[1], cmap="viridis") axes[1].set_title("Observed WDM coefficient grid") fig.tight_layout() _ = save_figure(fig, "contamination_overview")

Build a simple glitch score¶

The cleanup rule below is intentionally simple:

1. Compute a robust per-channel scale from the coefficient magnitudes.
2. Whiten the WDM grid by that scale.
3. Blur the absolute whitened grid with a small Gaussian filter.
4. Collapse the blurred grid into one score per time bin.
5. Threshold the score and smooth the resulting binary mask.

The logic is that a glitch tends to light up many channels at once in a small number of neighboring WDM time bins, whereas the underlying signal is more structured and channel-localized.

In [4]:

one_pass = detect_glitches(coeffs, dt=dt)
channel_scale = np.asarray(one_pass["channel_scale"])
whitened = np.asarray(one_pass["whitened"])
score_grid = np.asarray(one_pass["score_grid"])
time_score = np.asarray(one_pass["time_score"])
threshold = float(one_pass["threshold"])
mask_hard = np.asarray(one_pass["mask_hard"])
mask_soft = np.asarray(one_pass["mask_soft"])
attenuation = 1.0 - 0.92 * mask_soft[:, None]

flagged_bins = np.asarray(one_pass["flagged_bins"])
time_bin_size = nf * dt

print(f"Flagged WDM time bins: {flagged_bins.tolist()}")
print(f"Threshold on time-bin score: {threshold:.3f}")

one_pass = detect_glitches(coeffs, dt=dt) channel_scale = np.asarray(one_pass["channel_scale"]) whitened = np.asarray(one_pass["whitened"]) score_grid = np.asarray(one_pass["score_grid"]) time_score = np.asarray(one_pass["time_score"]) threshold = float(one_pass["threshold"]) mask_hard = np.asarray(one_pass["mask_hard"]) mask_soft = np.asarray(one_pass["mask_soft"]) attenuation = 1.0 - 0.92 * mask_soft[:, None] flagged_bins = np.asarray(one_pass["flagged_bins"]) time_bin_size = nf * dt print(f"Flagged WDM time bins: {flagged_bins.tolist()}") print(f"Threshold on time-bin score: {threshold:.3f}")

Flagged WDM time bins: [1, 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15]
Threshold on time-bin score: 1.055

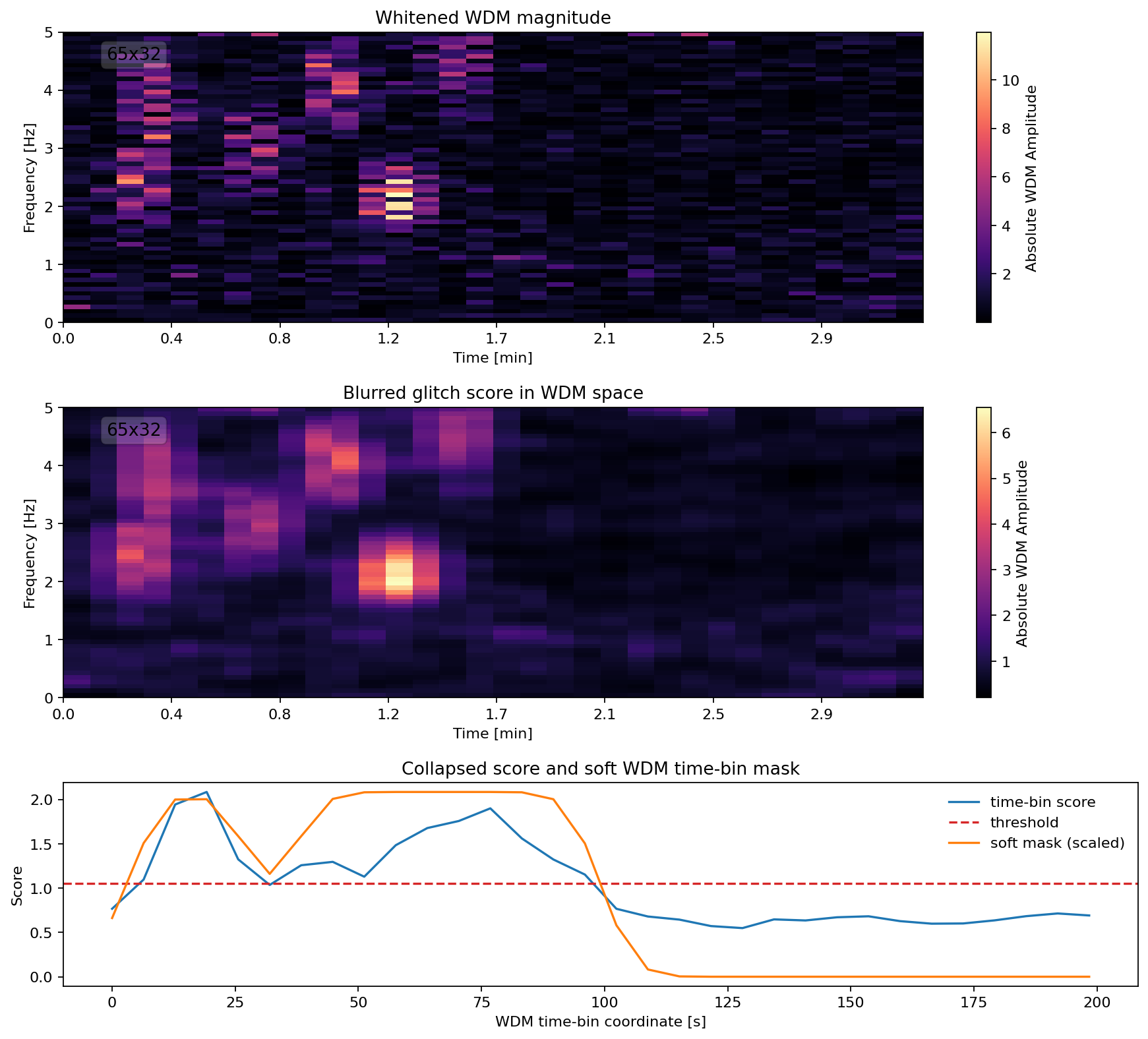

The panels below show the intermediate representation:

• whitened coefficient magnitudes
• the blurred score used for detection
• the final 1D soft mask over WDM time bins

In [5]:

fig, axes = plt.subplots(3, 1, figsize=(11, 10), height_ratios=[1.0, 1.0, 0.7])

WDM(whitened, dt=dt).plot(ax=axes[0], cmap="magma")
axes[0].set_title("Whitened WDM magnitude")

WDM(score_grid, dt=dt).plot(ax=axes[1], cmap="magma")
axes[1].set_title("Blurred glitch score in WDM space")

bin_times = np.arange(nt) * time_bin_size
axes[2].plot(bin_times, time_score, color="tab:blue", label="time-bin score")
axes[2].axhline(threshold, color="tab:red", linestyle="--", label="threshold")
axes[2].plot(bin_times, mask_soft * np.max(time_score), color="tab:orange", label="soft mask (scaled)")
axes[2].set_title("Collapsed score and soft WDM time-bin mask")
axes[2].set_xlabel("WDM time-bin coordinate [s]")
axes[2].set_ylabel("Score")
axes[2].legend(frameon=False, loc="upper right")

fig.tight_layout()
_ = save_figure(fig, "glitch_score_breakdown")

fig, axes = plt.subplots(3, 1, figsize=(11, 10), height_ratios=[1.0, 1.0, 0.7]) WDM(whitened, dt=dt).plot(ax=axes[0], cmap="magma") axes[0].set_title("Whitened WDM magnitude") WDM(score_grid, dt=dt).plot(ax=axes[1], cmap="magma") axes[1].set_title("Blurred glitch score in WDM space") bin_times = np.arange(nt) * time_bin_size axes[2].plot(bin_times, time_score, color="tab:blue", label="time-bin score") axes[2].axhline(threshold, color="tab:red", linestyle="--", label="threshold") axes[2].plot(bin_times, mask_soft * np.max(time_score), color="tab:orange", label="soft mask (scaled)") axes[2].set_title("Collapsed score and soft WDM time-bin mask") axes[2].set_xlabel("WDM time-bin coordinate [s]") axes[2].set_ylabel("Score") axes[2].legend(frameon=False, loc="upper right") fig.tight_layout() _ = save_figure(fig, "glitch_score_breakdown")

Reconstruct the cleaned series¶

We attenuate the WDM coefficients in the flagged time bins and reconstruct back to the time domain. This simple version applies the same time-bin mask to every channel.

In [6]:

cleaned_coeffs = coeffs * attenuation
cleaned_series = WDM(cleaned_coeffs, dt=dt).to_time_series()
cleaned = np.asarray(cleaned_series.data)

observed_mse = float(np.mean((observed - reference) ** 2))
cleaned_mse = float(np.mean((cleaned - reference) ** 2))

print(f"MSE before cleanup: {observed_mse:.4f}")
print(f"MSE after cleanup : {cleaned_mse:.4f}")

cleaned_coeffs = coeffs * attenuation cleaned_series = WDM(cleaned_coeffs, dt=dt).to_time_series() cleaned = np.asarray(cleaned_series.data) observed_mse = float(np.mean((observed - reference) ** 2)) cleaned_mse = float(np.mean((cleaned - reference) ** 2)) print(f"MSE before cleanup: {observed_mse:.4f}") print(f"MSE after cleanup : {cleaned_mse:.4f}")

MSE before cleanup: 0.1636
MSE after cleanup : 0.0710

Iterative detect-clean-reconstruct loop¶

A natural refinement is to repeat the same operation a few times:

1. detect unusual WDM activity
2. attenuate the flagged bins
3. reconstruct the time series
4. transform the cleaned result back to WDM and detect again

The motivation is simple. A very loud glitch can partially hide weaker neighbors on the first pass. After one reconstruction, the dominant artifact is smaller, so the next pass can refine the score and the mask.

In [7]:

iter_history = iterative_deglitch(observed, dt=dt, nt=nt, n_iter=3)
iter_cleaned = np.asarray(iter_history[-1]["cleaned"])
iter_mse = float(np.mean((iter_cleaned - reference) ** 2))

print("Iterative deglitching summary")
for step in iter_history:
    flagged = np.asarray(step["flagged_bins"]).tolist()
    mse = float(np.mean((np.asarray(step["cleaned"]) - reference) ** 2))
    print(
        f"  iter {int(step['iteration'])}: "
        f"flagged bins={flagged}, "
        f"threshold={float(step['threshold']):.3f}, "
        f"MSE={mse:.4f}"
    )

iter_history = iterative_deglitch(observed, dt=dt, nt=nt, n_iter=3) iter_cleaned = np.asarray(iter_history[-1]["cleaned"]) iter_mse = float(np.mean((iter_cleaned - reference) ** 2)) print("Iterative deglitching summary") for step in iter_history: flagged = np.asarray(step["flagged_bins"]).tolist() mse = float(np.mean((np.asarray(step["cleaned"]) - reference) ** 2)) print( f" iter {int(step['iteration'])}: " f"flagged bins={flagged}, " f"threshold={float(step['threshold']):.3f}, " f"MSE={mse:.4f}" )

Iterative deglitching summary
  iter 1: flagged bins=[1, 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15], threshold=1.055, MSE=0.0699
  iter 2: flagged bins=[2, 3, 4, 6, 7, 9, 10, 11, 12, 13, 14, 15], threshold=0.970, MSE=0.0489
  iter 3: flagged bins=[2, 3, 4, 6, 7, 9, 10, 11, 12, 13, 14, 15], threshold=0.929, MSE=0.0481

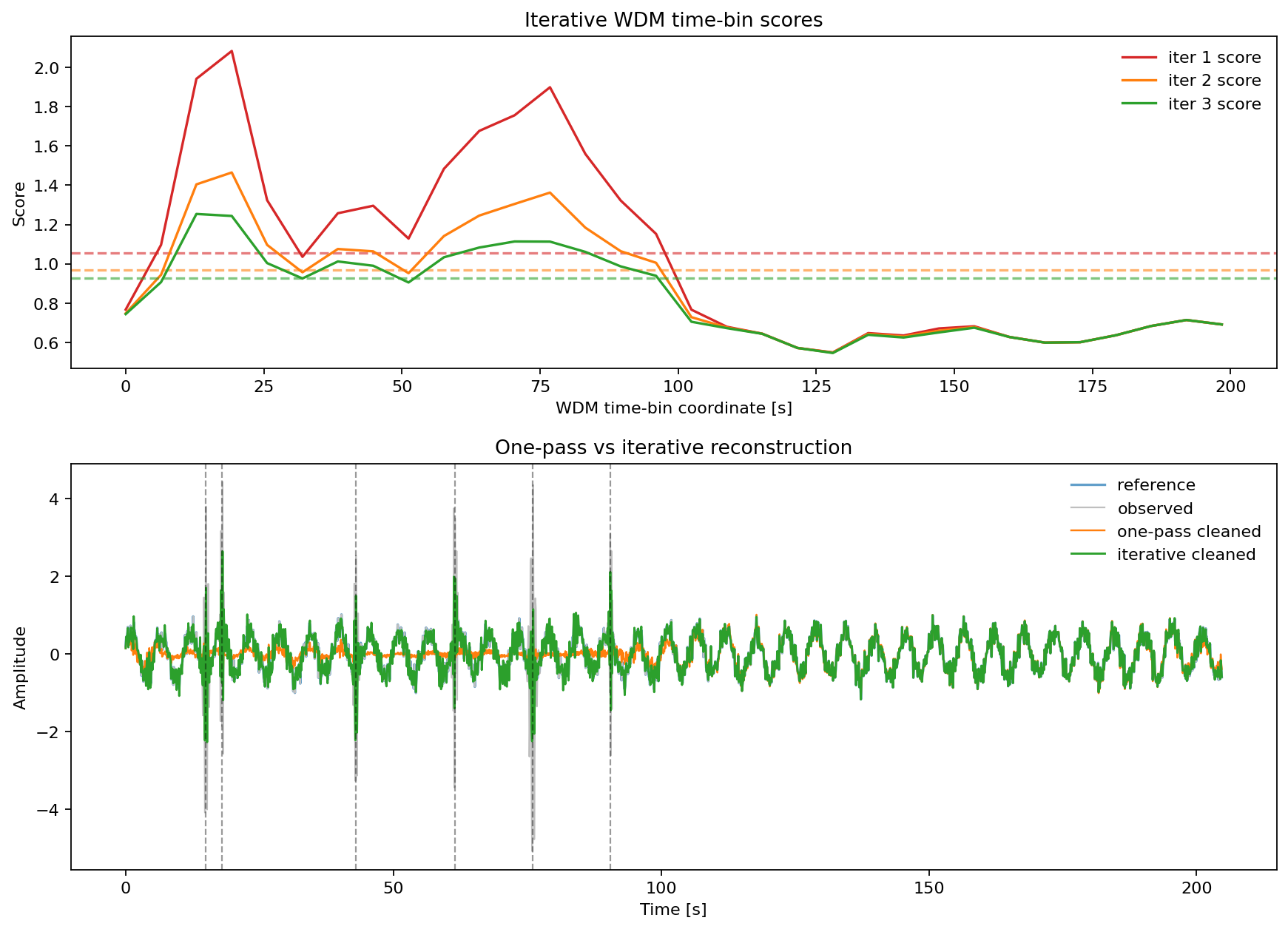

The next figure shows how the time-bin score evolves as we iterate. In a good case the peaks caused by the glitches become less extreme after each pass, and the cleaned waveform gets closer to the reference signal-plus-noise series.

In this toy problem the first pass already removes most of the artifact power. Later passes still refine the score, but they also start to attenuate some non-glitch structure. That is why iterative schemes usually need an explicit stopping rule instead of a fixed number of passes.

In [8]:

fig, axes = plt.subplots(2, 1, figsize=(11, 8), height_ratios=[0.9, 1.1])

colors = ["tab:red", "tab:orange", "tab:green"]
for step, color in zip(iter_history, colors, strict=True):
    axes[0].plot(
        bin_times,
        np.asarray(step["time_score"]),
        color=color,
        label=f"iter {int(step['iteration'])} score",
    )
    axes[0].axhline(
        float(step["threshold"]),
        color=color,
        linestyle="--",
        alpha=0.6,
    )
axes[0].set_title("Iterative WDM time-bin scores")
axes[0].set_xlabel("WDM time-bin coordinate [s]")
axes[0].set_ylabel("Score")
axes[0].legend(frameon=False, loc="upper right")

axes[1].plot(times, reference, color="tab:blue", alpha=0.7, label="reference")
axes[1].plot(times, observed, color="0.75", linewidth=1.0, label="observed")
axes[1].plot(times, cleaned, color="tab:orange", linewidth=1.1, label="one-pass cleaned")
axes[1].plot(times, iter_cleaned, color="tab:green", linewidth=1.3, label="iterative cleaned")
for center in glitch_centers:
    axes[1].axvline(center * dt, color="black", linestyle="--", linewidth=1.0, alpha=0.4)
axes[1].set_title("One-pass vs iterative reconstruction")
axes[1].set_xlabel("Time [s]")
axes[1].set_ylabel("Amplitude")
axes[1].legend(frameon=False, loc="upper right")

fig.tight_layout()
_ = save_figure(fig, "iterative_score_and_reconstruction")

fig, axes = plt.subplots(2, 1, figsize=(11, 8), height_ratios=[0.9, 1.1]) colors = ["tab:red", "tab:orange", "tab:green"] for step, color in zip(iter_history, colors, strict=True): axes[0].plot( bin_times, np.asarray(step["time_score"]), color=color, label=f"iter {int(step['iteration'])} score", ) axes[0].axhline( float(step["threshold"]), color=color, linestyle="--", alpha=0.6, ) axes[0].set_title("Iterative WDM time-bin scores") axes[0].set_xlabel("WDM time-bin coordinate [s]") axes[0].set_ylabel("Score") axes[0].legend(frameon=False, loc="upper right") axes[1].plot(times, reference, color="tab:blue", alpha=0.7, label="reference") axes[1].plot(times, observed, color="0.75", linewidth=1.0, label="observed") axes[1].plot(times, cleaned, color="tab:orange", linewidth=1.1, label="one-pass cleaned") axes[1].plot(times, iter_cleaned, color="tab:green", linewidth=1.3, label="iterative cleaned") for center in glitch_centers: axes[1].axvline(center * dt, color="black", linestyle="--", linewidth=1.0, alpha=0.4) axes[1].set_title("One-pass vs iterative reconstruction") axes[1].set_xlabel("Time [s]") axes[1].set_ylabel("Amplitude") axes[1].legend(frameon=False, loc="upper right") fig.tight_layout() _ = save_figure(fig, "iterative_score_and_reconstruction")

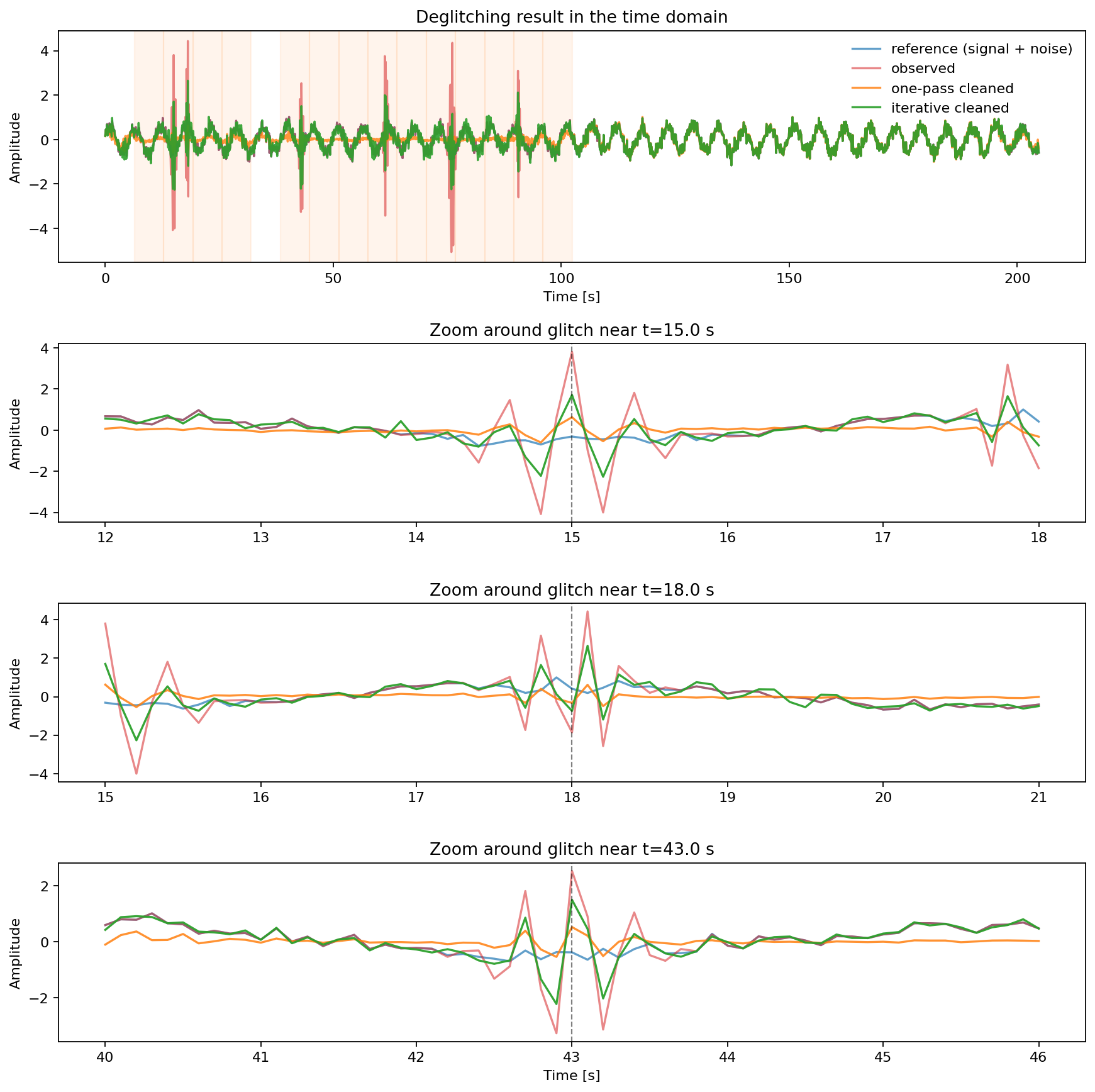

The next figure compares the full time series and then zooms into the glitch neighborhoods. This makes it easier to see both the suppression and the price paid by such a simple mask.

In [9]:

fig, axes = plt.subplots(4, 1, figsize=(11, 11), height_ratios=[1.3, 1.0, 1.0, 1.0])

axes[0].plot(times, reference, color="tab:blue", alpha=0.7, label="reference (signal + noise)")
axes[0].plot(times, observed, color="tab:red", alpha=0.55, label="observed")
axes[0].plot(times, cleaned, color="tab:orange", alpha=0.8, label="one-pass cleaned")
axes[0].plot(times, iter_cleaned, color="tab:green", alpha=0.9, label="iterative cleaned")
for bin_idx in flagged_bins:
    start = bin_idx * time_bin_size
    axes[0].axvspan(start, start + time_bin_size, color="tab:orange", alpha=0.08)
axes[0].set_title("Deglitching result in the time domain")
axes[0].set_xlabel("Time [s]")
axes[0].set_ylabel("Amplitude")
axes[0].legend(frameon=False, loc="upper right")

window_half_width = 3.0
for ax, center in zip(axes[1:], glitch_centers):
    center_time = center * dt
    mask = np.abs(times - center_time) <= window_half_width
    ax.plot(times[mask], reference[mask], color="tab:blue", alpha=0.7, label="reference")
    ax.plot(times[mask], observed[mask], color="tab:red", alpha=0.55, label="observed")
    ax.plot(times[mask], cleaned[mask], color="tab:orange", alpha=0.85, label="one-pass cleaned")
    ax.plot(times[mask], iter_cleaned[mask], color="tab:green", alpha=0.95, label="iterative cleaned")
    ax.axvline(center_time, color="black", linestyle="--", linewidth=1.0, alpha=0.5)
    ax.set_ylabel("Amplitude")
    ax.set_title(f"Zoom around glitch near t={center_time:.1f} s")

axes[-1].set_xlabel("Time [s]")
fig.tight_layout()
_ = save_figure(fig, "deglitching_time_domain_zoom")

fig, axes = plt.subplots(4, 1, figsize=(11, 11), height_ratios=[1.3, 1.0, 1.0, 1.0]) axes[0].plot(times, reference, color="tab:blue", alpha=0.7, label="reference (signal + noise)") axes[0].plot(times, observed, color="tab:red", alpha=0.55, label="observed") axes[0].plot(times, cleaned, color="tab:orange", alpha=0.8, label="one-pass cleaned") axes[0].plot(times, iter_cleaned, color="tab:green", alpha=0.9, label="iterative cleaned") for bin_idx in flagged_bins: start = bin_idx * time_bin_size axes[0].axvspan(start, start + time_bin_size, color="tab:orange", alpha=0.08) axes[0].set_title("Deglitching result in the time domain") axes[0].set_xlabel("Time [s]") axes[0].set_ylabel("Amplitude") axes[0].legend(frameon=False, loc="upper right") window_half_width = 3.0 for ax, center in zip(axes[1:], glitch_centers): center_time = center * dt mask = np.abs(times - center_time) <= window_half_width ax.plot(times[mask], reference[mask], color="tab:blue", alpha=0.7, label="reference") ax.plot(times[mask], observed[mask], color="tab:red", alpha=0.55, label="observed") ax.plot(times[mask], cleaned[mask], color="tab:orange", alpha=0.85, label="one-pass cleaned") ax.plot(times[mask], iter_cleaned[mask], color="tab:green", alpha=0.95, label="iterative cleaned") ax.axvline(center_time, color="black", linestyle="--", linewidth=1.0, alpha=0.5) ax.set_ylabel("Amplitude") ax.set_title(f"Zoom around glitch near t={center_time:.1f} s") axes[-1].set_xlabel("Time [s]") fig.tight_layout() _ = save_figure(fig, "deglitching_time_domain_zoom")

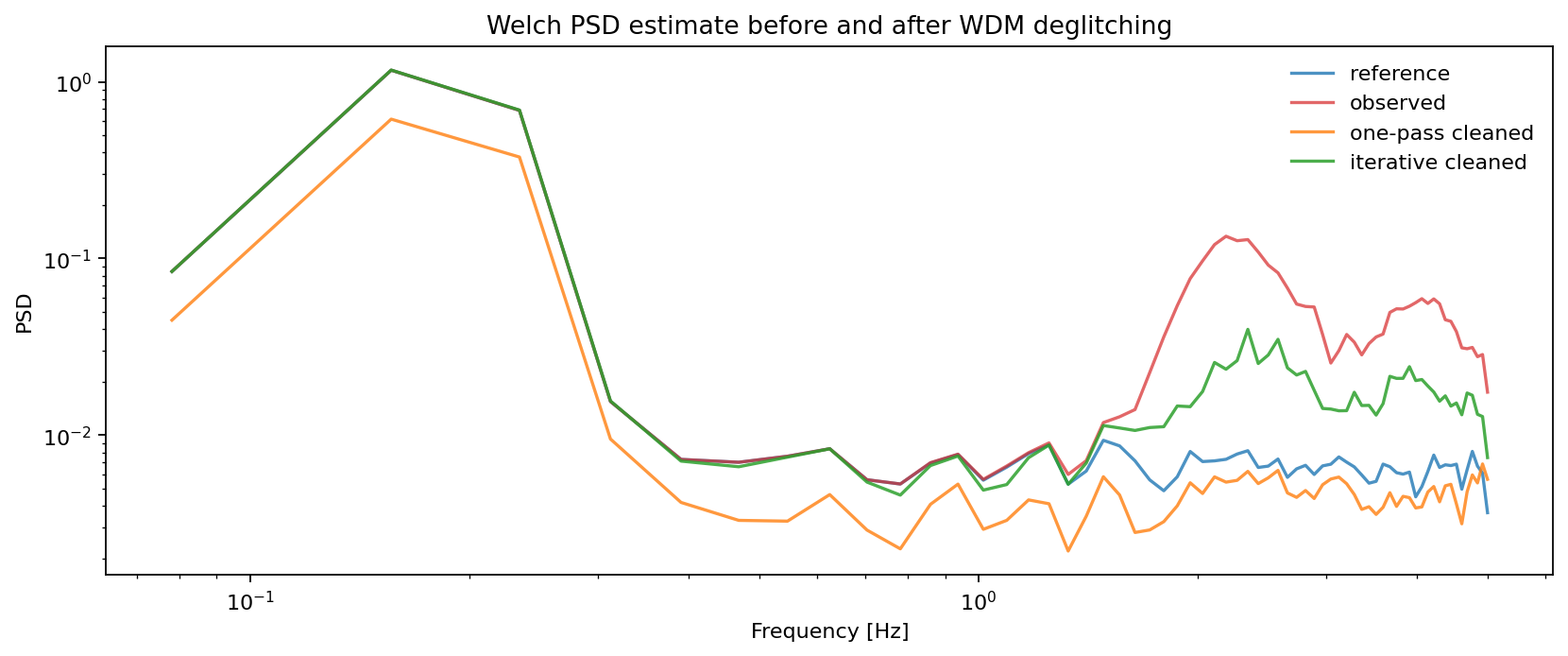

PSD estimate before and after cleanup¶

A useful side effect of deglitching is that stationary spectral estimates are often less biased by rare, loud artifacts. We compare Welch PSD estimates for the observed data, the one-pass and iterative cleaned reconstructions, and the reference data without glitches.

In [10]:

freqs_ref, psd_ref = welch_psd(reference, dt)
freqs_obs, psd_obs = welch_psd(observed, dt)
freqs_cleaned, psd_cleaned = welch_psd(cleaned, dt)
freqs_iter, psd_iter = welch_psd(iter_cleaned, dt)

fig, ax = plt.subplots(figsize=(10.5, 4.5))
ax.loglog(freqs_ref[1:], psd_ref[1:], color="tab:blue", alpha=0.8, label="reference")
ax.loglog(freqs_obs[1:], psd_obs[1:], color="tab:red", alpha=0.7, label="observed")
ax.loglog(freqs_cleaned[1:], psd_cleaned[1:], color="tab:orange", alpha=0.8, label="one-pass cleaned")
ax.loglog(freqs_iter[1:], psd_iter[1:], color="tab:green", alpha=0.85, label="iterative cleaned")
ax.set_title("Welch PSD estimate before and after WDM deglitching")
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel("PSD")
ax.legend(frameon=False, loc="best")
fig.tight_layout()
_ = save_figure(fig, "welch_psd_cleanup_comparison")

freqs_ref, psd_ref = welch_psd(reference, dt) freqs_obs, psd_obs = welch_psd(observed, dt) freqs_cleaned, psd_cleaned = welch_psd(cleaned, dt) freqs_iter, psd_iter = welch_psd(iter_cleaned, dt) fig, ax = plt.subplots(figsize=(10.5, 4.5)) ax.loglog(freqs_ref[1:], psd_ref[1:], color="tab:blue", alpha=0.8, label="reference") ax.loglog(freqs_obs[1:], psd_obs[1:], color="tab:red", alpha=0.7, label="observed") ax.loglog(freqs_cleaned[1:], psd_cleaned[1:], color="tab:orange", alpha=0.8, label="one-pass cleaned") ax.loglog(freqs_iter[1:], psd_iter[1:], color="tab:green", alpha=0.85, label="iterative cleaned") ax.set_title("Welch PSD estimate before and after WDM deglitching") ax.set_xlabel("Frequency [Hz]") ax.set_ylabel("PSD") ax.legend(frameon=False, loc="best") fig.tight_layout() _ = save_figure(fig, "welch_psd_cleanup_comparison")

Downstream signal inference with numpyro¶

A common question after deglitching is whether the cleaned data leads to better parameter inference. To show that, we fit the dominant monochromatic component in this synthetic dataset:

• amplitude A
• frequency f0
• phase phi
• residual scatter sigma

For this inference step we again use a more selective coefficient mask than the waveform/PSD section above. We also apply it iteratively, so the dominant artifact coefficients are removed first and the next WDM pass can refine the mask on a cleaner background.

In [11]:

inference_current = observed.copy()
for _ in range(2):
    inference_coeffs = np.asarray(TimeSeries(inference_current, dt=dt).to_wdm(nt=nt).coeffs)
    inference_detection = detect_glitches(inference_coeffs, dt=dt)
    inference_coeff_mask = (np.asarray(inference_detection["whitened"]) > 2.5).astype(float)
    inference_attenuation = 1.0 - 0.92 * (
        np.asarray(inference_detection["mask_soft"])[:, None] * inference_coeff_mask
    )
    inference_current = np.asarray(
        WDM(inference_coeffs * inference_attenuation, dt=dt).to_time_series().data
    )

inference_cleaned = inference_current

observed_samples = run_nuts(observed, times, seed=0)
inference_cleaned_samples = run_nuts(inference_cleaned, times, seed=1)
reference_samples = run_nuts(reference, times, seed=2)

observed_summary = summarize(observed_samples)
inference_summary = summarize(inference_cleaned_samples)
reference_summary = summarize(reference_samples)

print("Posterior mean ± std")
print(
    f"  observed         : A={observed_summary['A'][0]:.4f}±{observed_summary['A'][1]:.4f}, "
    f"f0={observed_summary['f0'][0]:.5f}±{observed_summary['f0'][1]:.5f}, "
    f"phi={observed_summary['phi'][0]:.4f}±{observed_summary['phi'][1]:.4f}, "
    f"sigma={observed_summary['sigma'][0]:.4f}±{observed_summary['sigma'][1]:.4f}"
)
print(
    f"  inference-cleaned: A={inference_summary['A'][0]:.4f}±{inference_summary['A'][1]:.4f}, "
    f"f0={inference_summary['f0'][0]:.5f}±{inference_summary['f0'][1]:.5f}, "
    f"phi={inference_summary['phi'][0]:.4f}±{inference_summary['phi'][1]:.4f}, "
    f"sigma={inference_summary['sigma'][0]:.4f}±{inference_summary['sigma'][1]:.4f}"
)
print(
    f"  reference        : A={reference_summary['A'][0]:.4f}±{reference_summary['A'][1]:.4f}, "
    f"f0={reference_summary['f0'][0]:.5f}±{reference_summary['f0'][1]:.5f}, "
    f"phi={reference_summary['phi'][0]:.4f}±{reference_summary['phi'][1]:.4f}, "
    f"sigma={reference_summary['sigma'][0]:.4f}±{reference_summary['sigma'][1]:.4f}"
)

inference_current = observed.copy() for _ in range(2): inference_coeffs = np.asarray(TimeSeries(inference_current, dt=dt).to_wdm(nt=nt).coeffs) inference_detection = detect_glitches(inference_coeffs, dt=dt) inference_coeff_mask = (np.asarray(inference_detection["whitened"]) > 2.5).astype(float) inference_attenuation = 1.0 - 0.92 * ( np.asarray(inference_detection["mask_soft"])[:, None] * inference_coeff_mask ) inference_current = np.asarray( WDM(inference_coeffs * inference_attenuation, dt=dt).to_time_series().data ) inference_cleaned = inference_current observed_samples = run_nuts(observed, times, seed=0) inference_cleaned_samples = run_nuts(inference_cleaned, times, seed=1) reference_samples = run_nuts(reference, times, seed=2) observed_summary = summarize(observed_samples) inference_summary = summarize(inference_cleaned_samples) reference_summary = summarize(reference_samples) print("Posterior mean ± std") print( f" observed : A={observed_summary['A'][0]:.4f}±{observed_summary['A'][1]:.4f}, " f"f0={observed_summary['f0'][0]:.5f}±{observed_summary['f0'][1]:.5f}, " f"phi={observed_summary['phi'][0]:.4f}±{observed_summary['phi'][1]:.4f}, " f"sigma={observed_summary['sigma'][0]:.4f}±{observed_summary['sigma'][1]:.4f}" ) print( f" inference-cleaned: A={inference_summary['A'][0]:.4f}±{inference_summary['A'][1]:.4f}, " f"f0={inference_summary['f0'][0]:.5f}±{inference_summary['f0'][1]:.5f}, " f"phi={inference_summary['phi'][0]:.4f}±{inference_summary['phi'][1]:.4f}, " f"sigma={inference_summary['sigma'][0]:.4f}±{inference_summary['sigma'][1]:.4f}" ) print( f" reference : A={reference_summary['A'][0]:.4f}±{reference_summary['A'][1]:.4f}, " f"f0={reference_summary['f0'][0]:.5f}±{reference_summary['f0'][1]:.5f}, " f"phi={reference_summary['phi'][0]:.4f}±{reference_summary['phi'][1]:.4f}, " f"sigma={reference_summary['sigma'][0]:.4f}±{reference_summary['sigma'][1]:.4f}" )

Posterior mean ± std
  observed         : A=0.5521±0.0134, f0=0.17999±0.00007, phi=0.3128±0.0530, sigma=0.4414±0.0071
  inference-cleaned: A=0.5527±0.0074, f0=0.18001±0.00004, phi=0.3007±0.0260, sigma=0.2305±0.0038
  reference        : A=0.5533±0.0062, f0=0.17998±0.00003, phi=0.3139±0.0221, sigma=0.1892±0.0029

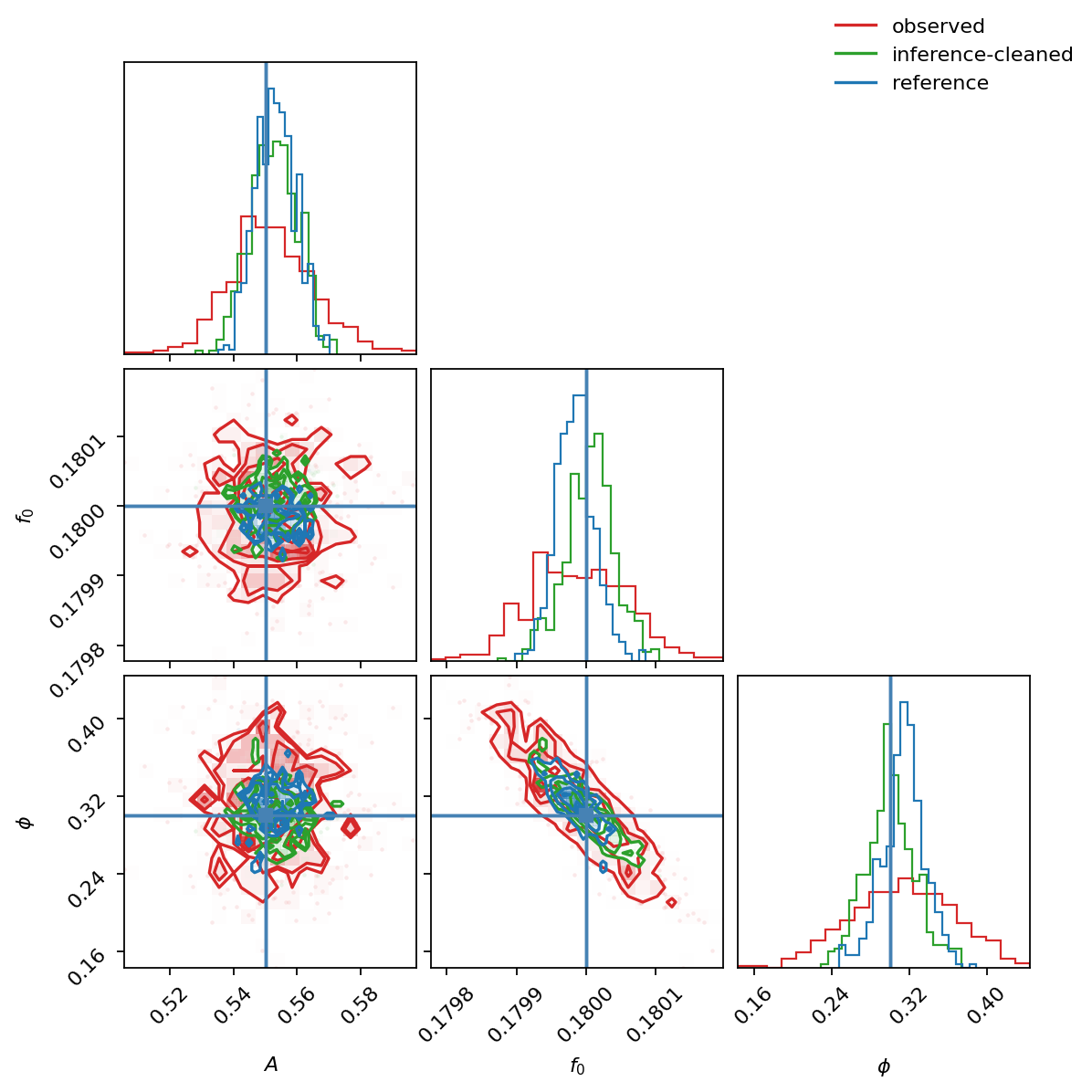

The comparison below is the main point: after selective WDM deglitching, the posterior for the dominant sinusoid moves closer to the no-glitch reference and the fitted residual scatter sigma drops substantially.

In [12]:

truths = np.array([TARGET_AMPLITUDE, TARGET_FREQUENCY, TARGET_PHASE])
fig = corner.corner(
    pack_samples(observed_samples),
    labels=[r"$A$", r"$f_0$", r"$\phi$"],
    truths=truths,
    color="tab:red",
    hist_kwargs={"density": True},
    plot_contours=True,
    fill_contours=False,
)
corner.corner(
    pack_samples(inference_cleaned_samples),
    fig=fig,
    labels=[r"$A$", r"$f_0$", r"$\phi$"],
    truths=truths,
    color="tab:green",
    hist_kwargs={"density": True},
    plot_contours=True,
    fill_contours=False,
)
corner.corner(
    pack_samples(reference_samples),
    fig=fig,
    labels=[r"$A$", r"$f_0$", r"$\phi$"],
    truths=truths,
    color="tab:blue",
    hist_kwargs={"density": True},
    plot_contours=True,
    fill_contours=False,
)
fig.legend(
    handles=[
        Line2D([], [], color="tab:red", label="observed"),
        Line2D([], [], color="tab:green", label="inference-cleaned"),
        Line2D([], [], color="tab:blue", label="reference"),
    ],
    loc="upper right",
    frameon=False,
)
_ = save_figure(fig, "posterior_comparison")

truths = np.array([TARGET_AMPLITUDE, TARGET_FREQUENCY, TARGET_PHASE]) fig = corner.corner( pack_samples(observed_samples), labels=[r"$A$", r"$f_0$", r"$\phi$"], truths=truths, color="tab:red", hist_kwargs={"density": True}, plot_contours=True, fill_contours=False, ) corner.corner( pack_samples(inference_cleaned_samples), fig=fig, labels=[r"$A$", r"$f_0$", r"$\phi$"], truths=truths, color="tab:green", hist_kwargs={"density": True}, plot_contours=True, fill_contours=False, ) corner.corner( pack_samples(reference_samples), fig=fig, labels=[r"$A$", r"$f_0$", r"$\phi$"], truths=truths, color="tab:blue", hist_kwargs={"density": True}, plot_contours=True, fill_contours=False, ) fig.legend( handles=[ Line2D([], [], color="tab:red", label="observed"), Line2D([], [], color="tab:green", label="inference-cleaned"), Line2D([], [], color="tab:blue", label="reference"), ], loc="upper right", frameon=False, ) _ = save_figure(fig, "posterior_comparison")

Remarks¶

This example deliberately uses a crude cleanup rule. It is useful because the logic is transparent:

• glitches are short in time and broad across channels
• the WDM grid makes that pattern easy to detect
• a soft time-bin mask already improves both the waveform and the PSD estimate
• iterating the same detect-reconstruct loop can refine the cleanup further, but it can also over-clean if you do not stop early enough

More realistic pipelines could use:

• channel-dependent masks
• stronger stopping criteria for iterative detection and reconstruction
• explicit glitch templates
• statistically calibrated thresholds instead of a hand-tuned MAD rule
